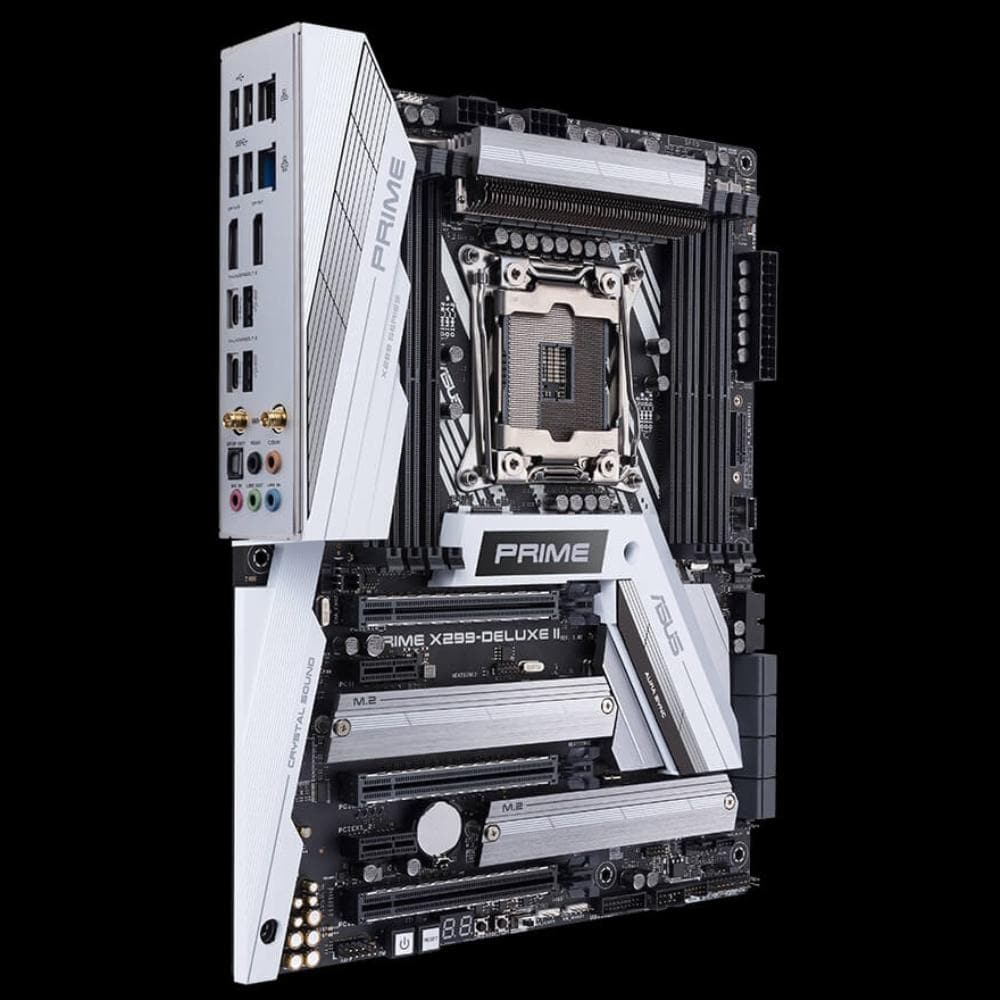

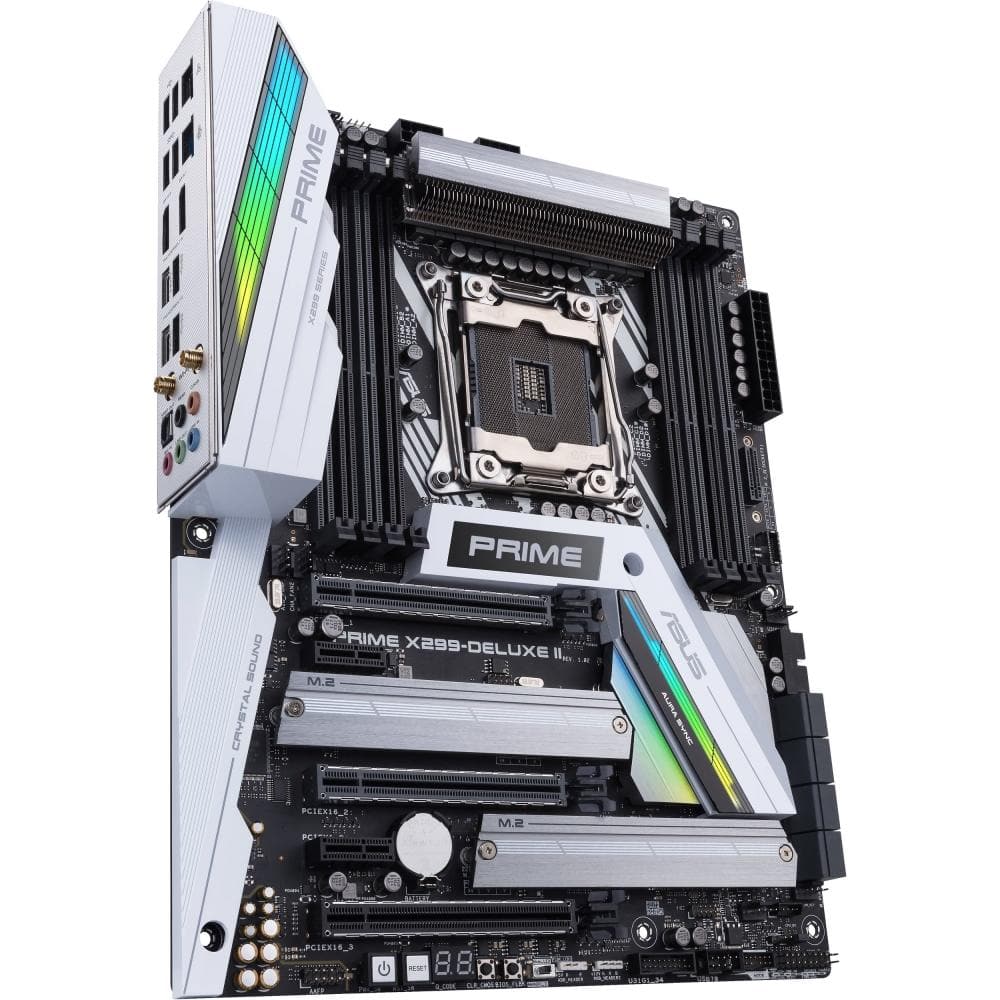

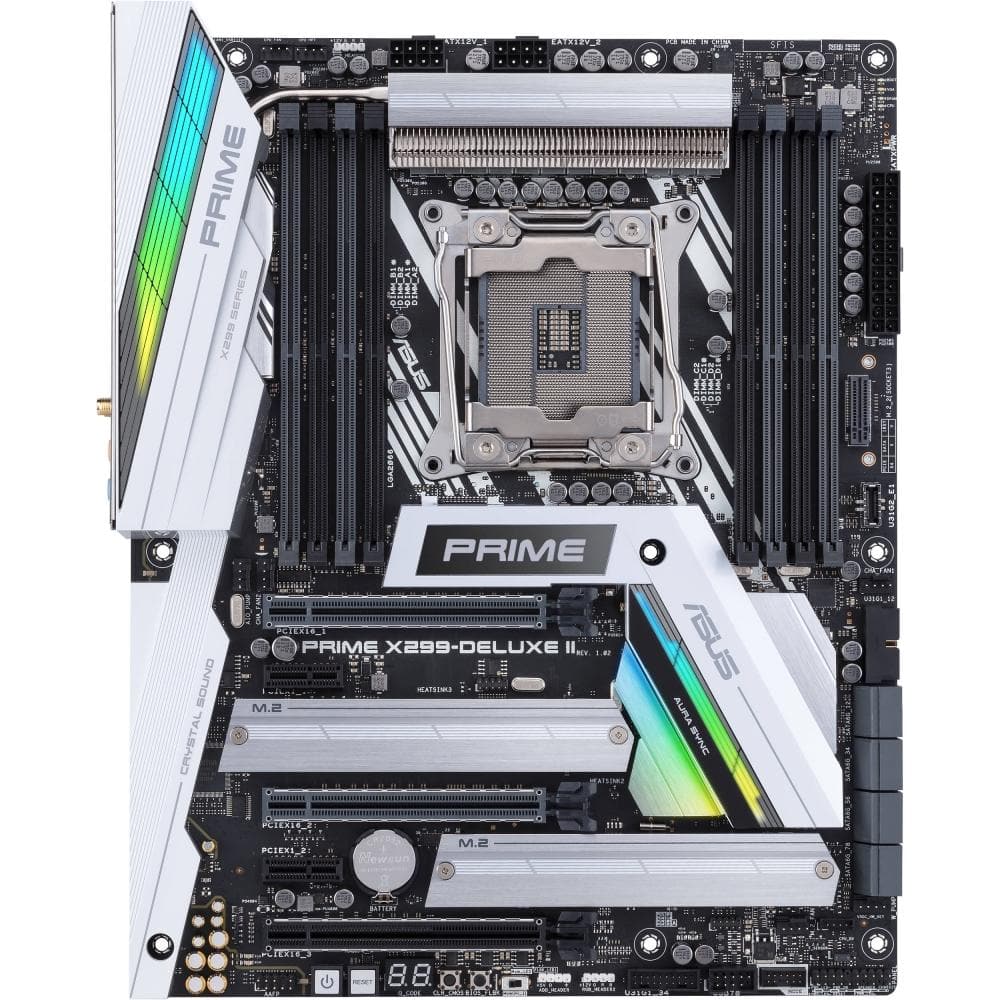

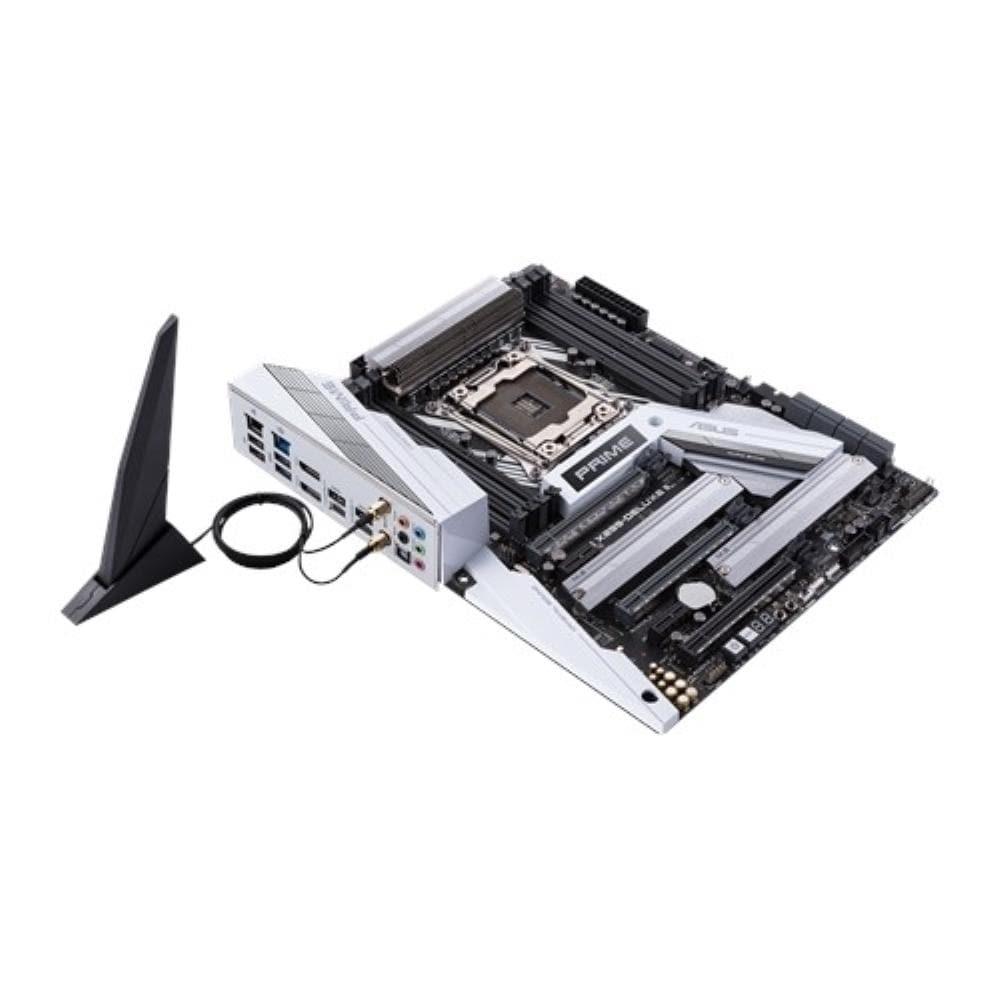

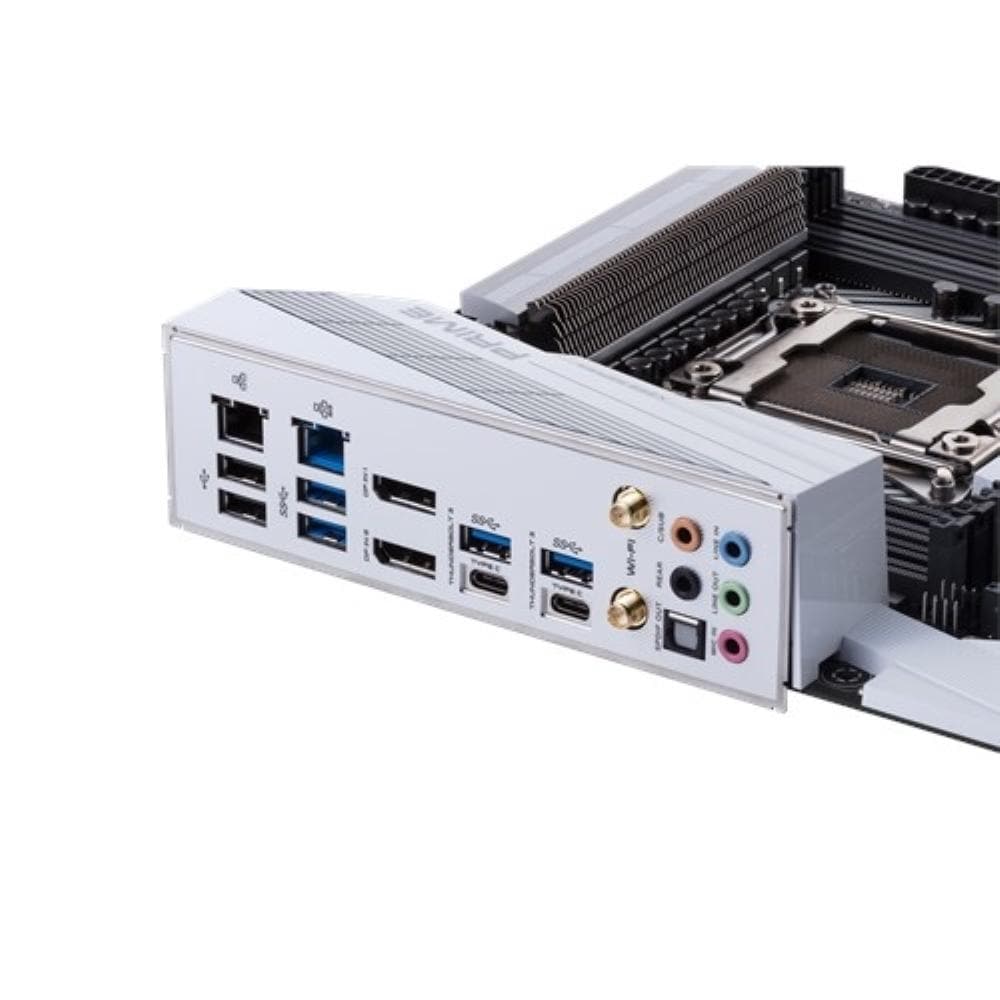

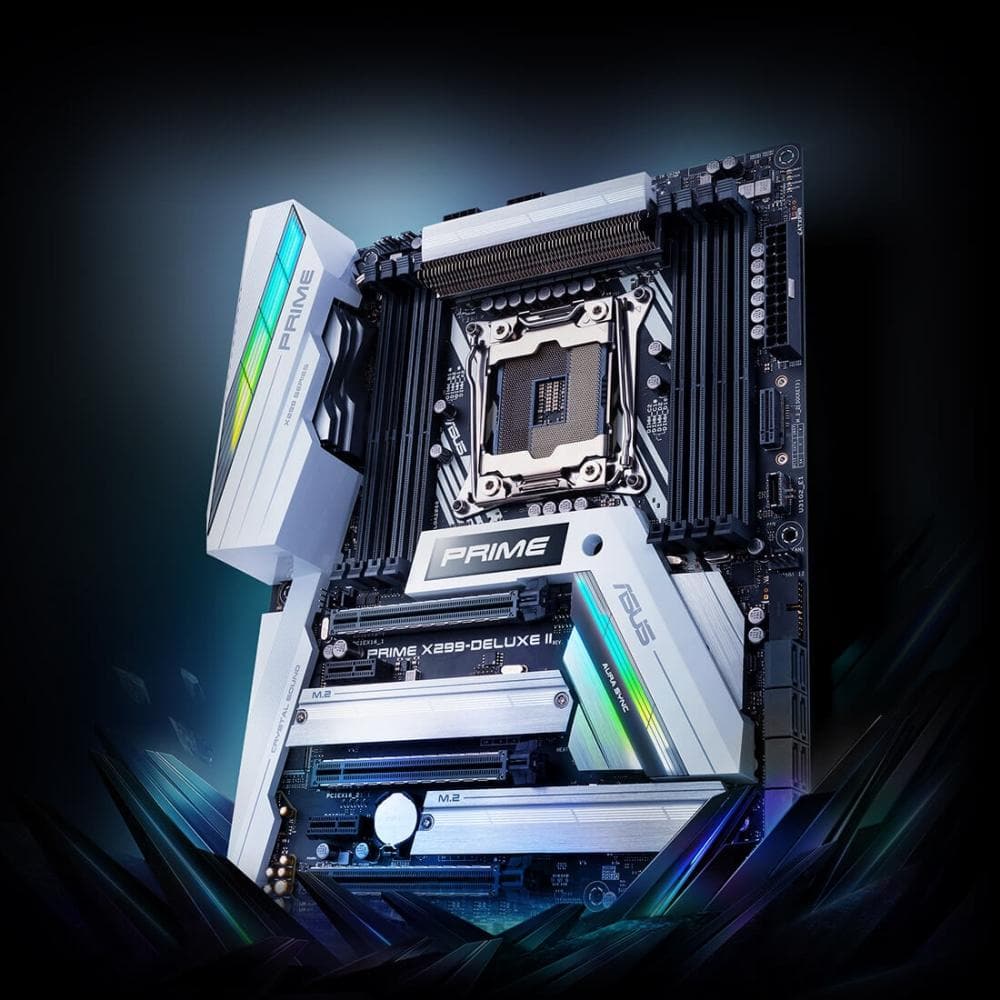

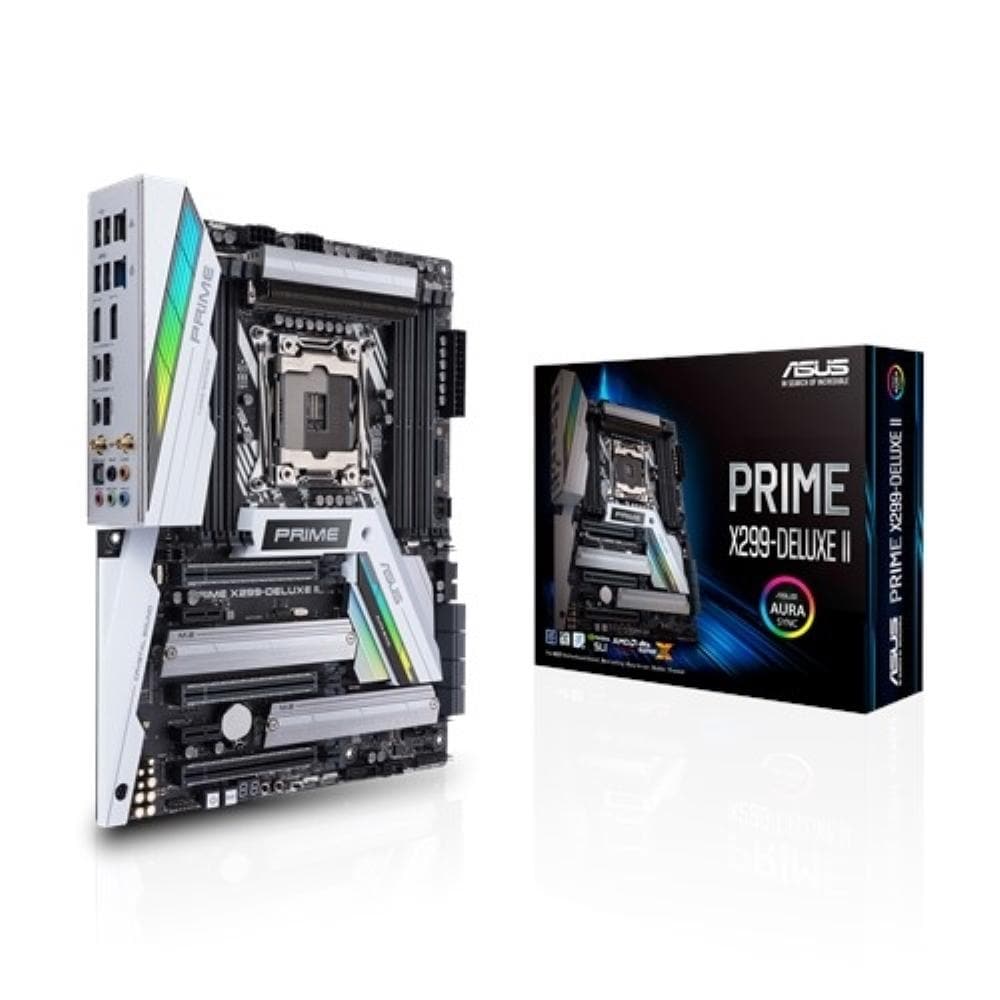

Intel LGA 2066 ATX motherboard with enhanced VRM and M.2 heatsink design, DDR4 4266 (O.C.)MHz, 802.11ac Wi-Fi, triple M.2, Type-C Thunderbolt 3 ports, Intel VROC support
Chipset | Intel X299 |
Form Factor | ATX |
Memory | 8x DDR4 /128GB |
Memory Frequency (MHz) | DDR4 4266(O.C.) |
PCIe x16 Slots | 3 |
PCIe x1 | 2 |
Multi-GPU Support | NVIDIA SLI AMD CrossFireX |
SATA 6Gb/s (incl. SATA Express) | 8 |
U.2 | - |
Thunderbolt | TB3 TB DP x 2 (Rear)Type-C x 2
|
Bluetooth & Wi-Fi 802.11ac (2.4/5GHz) | Yes |
Gigabit Ethernet | Aquantia AQC-107 10G 1 x Intel I219V |
RGB header | 1 x ARGB 2 x RGB |
Audio Codec | Realtek ALC S1220A |
Warranty | 3 Years |
