- Graphics Engine
AMD Radeon RX 5700 XT
- Bus Standard
PCI Express 4.0
- OpenGL
OpenGL®4.6
- Video Memory
GDDR6 8GB
- Engine Clock – OC Mode
P Mode : 1730 MHz (Base clock), Up to 1870 MHz (Game clock), ~ 1980 MHz (Boost clock)
- Engine Clock – Gaming Mode
P Mode : 1650 MHz (Base clock), Up to 1795 MHz (Game clock), ~ 1905 MHz (Boost clock)
- Stream Processors
2560
- Memory Clock
14 Gbps
- Memory Interface
256-bit
- Resolution
Digital Max Resolution:7680x4320

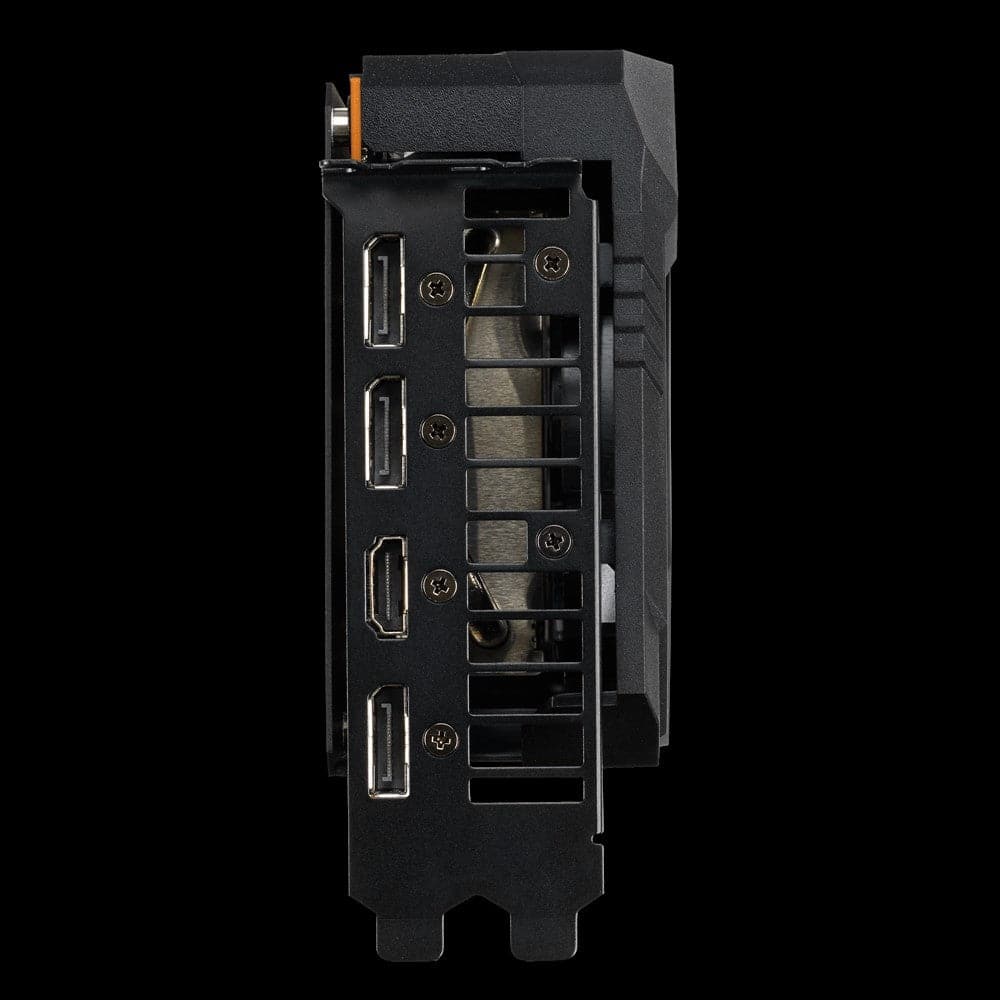

- Interface
HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (DisplayPort 1.4)
HDCP Support : Yes (2.3)
- Maximum Display Support
6
- NVlink/ Crossfire Support
Yes
- Recommended PSU
600W
- Power Connectors
1 x 6-pin, 1 x 8-pin
- Software
ASUS GPU Tweak II & Driver
- Dimensions
10.6 " x 5 " x 2.1 " Inch
26.9 x 12.5 x5.4 Centimeter
- Slot
2.7 slot
- Note
* Game Frequency is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
* Crossfire supports DX12 and Vulkan only.
