- CPU
Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to for CPU support list
- Chipset
Intel Z390
- Memory
4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
* Refer to for the Memory QVL (Qualified Vendors Lists).
- Graphic
Integrated Graphics Processor- Intel HD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz *1
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
- Multi-GPU Support
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
- Expansion Slots
2 x PCIe 3.0/2.0 x16 (x16 or dual x8)
1 x PCIe 3.0/2.0 x16 (max at x4 mode)
3 x PCIe 3.0/2.0 x1
- Storage
Intel Z390 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (both SATA & PCIE mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Support Raid 0, 1, 5, 10
Intel Optane Memory Ready
- LAN
Intel I219V
Anti-surge LANGuard
ROG GameFirst Technology
- Wireless Data Network
Intel Wireless-AC 9560
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports MU-MIMO
- Bluetooth
Bluetooth 5.0
- Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220A
- Dual OP Amplifiers
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- Supports up to 32-Bit/192kHz playback *2
Audio Feature :
- SupremeFX Shielding Technology
- Optical S/PDIF out port(s) at back panel
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese-made audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
- Sonic Radar III
- Sonic Studio III + Sonic Studio Link
- USB Ports
Intel Z390 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
Intel Z390 Chipset :
4 x USB 3.1 Gen 2 port(s) (3 x Type-A+1 x USB Type-CTM)
Intel Z390 Chipset :
4 x USB 3.1 Gen 1 port(s) (2 at back panel, blue, 2 at mid-board)
Intel Z390 Chipset :
6 x USB 2.0 port(s) (2 at back panel, black, 4 at mid-board)
- ROG Exclusive Features
ROG Exclusive Software
- RAMCache III
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
- Special Features
OC Design - ASUS PRO Clock Technology
- Full BCLK range for extreme overclocking performance
5-Way Optimization by Dual Intelligent Processors 5
- 5-Way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance, DIGI+ VRM, Fan Expert 4, and Turbo App
AI Overclocking
ASUS Optimem II
- Improved DDR4 Stability
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- MemOK! II
- AI Suite 3
- Ai Charger
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
ASUS EZ DIY :
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
ASUS Q-Design :
- ASUS Q-LED (CPU, DRAM, VGA, Boot Device LED)
- ASUS Q-Slot
- ASUS Q-DIMM
Gaming Aesthetics :
- 3D printing friendly
- AURA-RGB Lighting
Digi+VRM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
DIY Friendly Design
- Procool
- SafeSlot
- Digi+ VRM
- DRAM Overcurrent Protection
- Highly Durable components
- ESD Guards

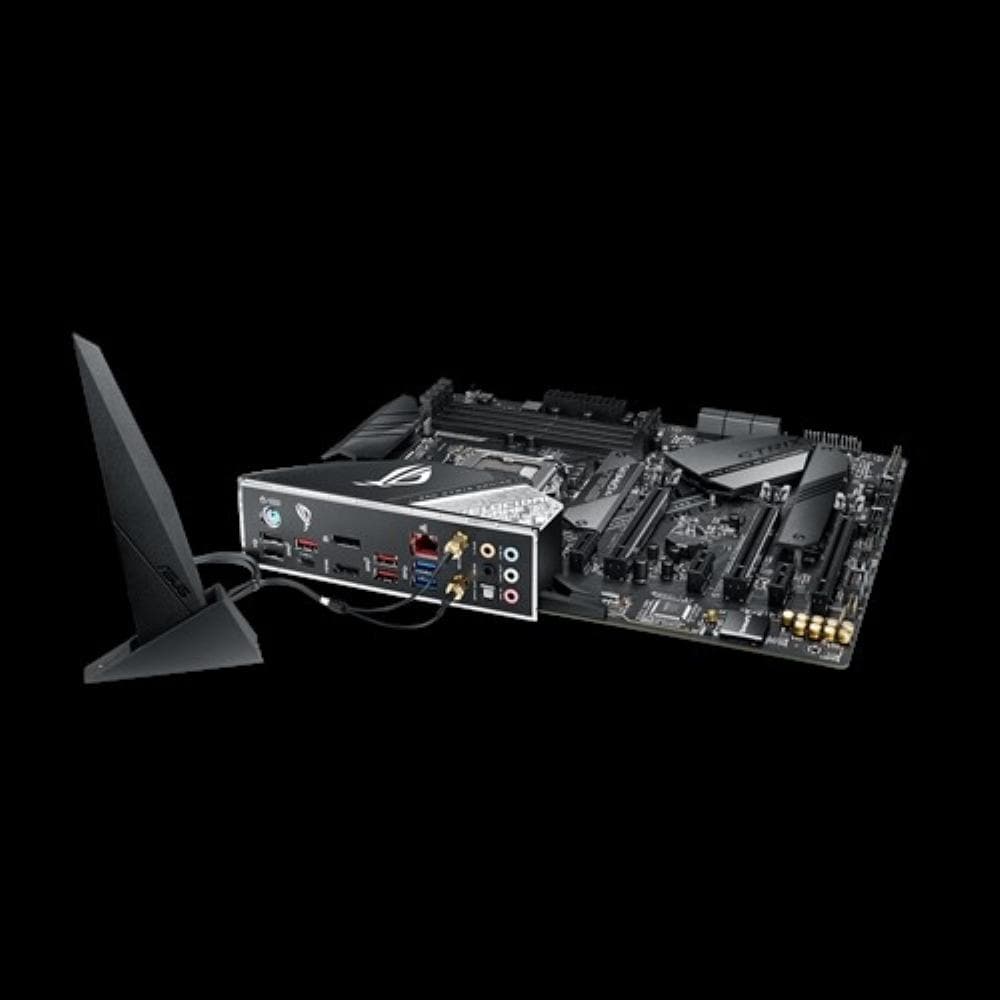

- Back I/O Ports
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.1 Gen 2 (3 x Type-A+1 x USB Type-CTM)
2 x USB 3.1 Gen 1
2 x USB 2.0
1 x Optical S/PDIF out
5 x Audio jack(s)
1 x ASUS Wi-Fi Module
- Internal I/O Ports
1 x Aura Addressable Strip Header(s)
1 x AAFP connector
2 x Aura RGB Strip Header(s)
1 x USB 3.1 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x M.2_FAN connector
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
2 x Chassis Fan connector(s)
1 x W_PUMP+ connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin ATX 12V Power connector(s)
1 x System panel(s) (Chassis intrusion header is inbuilt)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x CPU OV
1 x Clear CMOS jumper(s)
1 x Node Connector(s)
1 x 14-1 pin TPM connector
1 x COM port header
1 x AIO PUMP Header
1 x USB 3.1 Gen 2 front panel connector

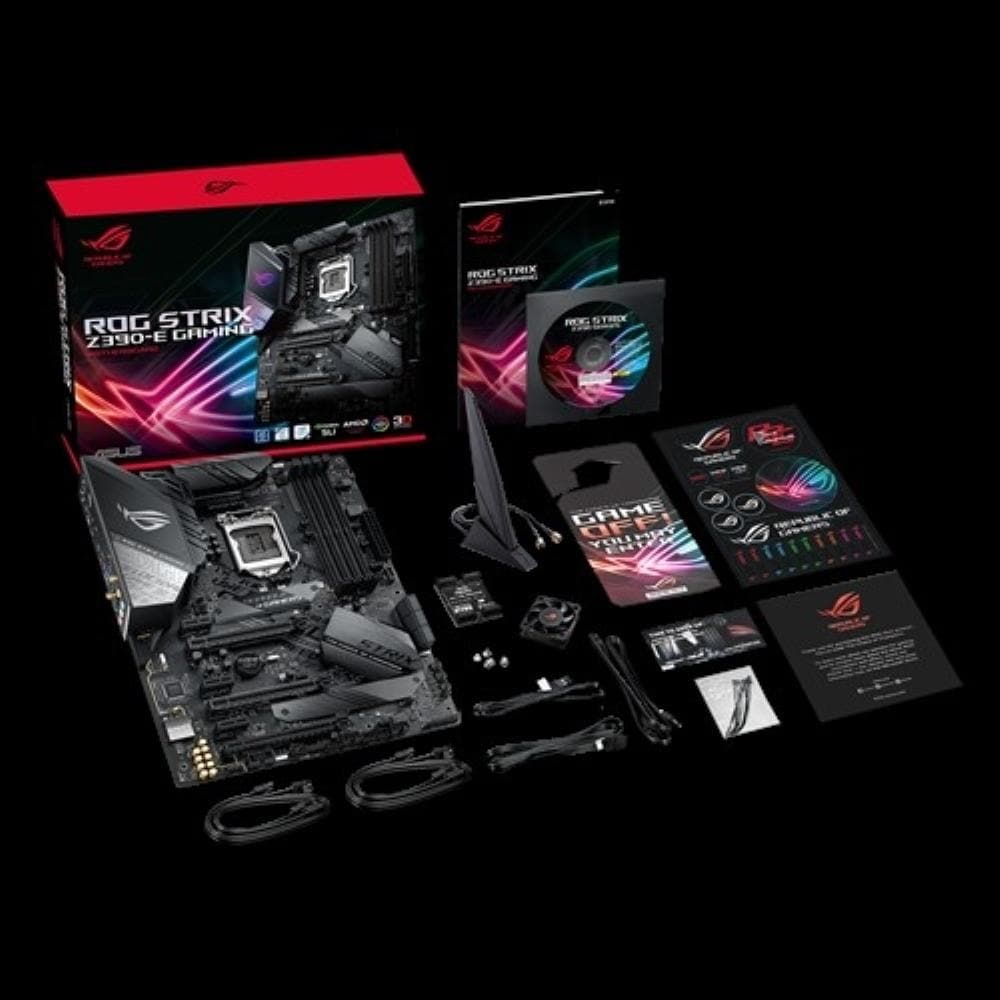

- Accessories
User's manual
4 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x CABLE TIE BLACK
1 x SLI HB BRIDGE(2-WAY-M)
1 x ROG Strix stickers
1 x Assistant Fans(40mm)
1 x screws for Assistant Fan(s)
1 x ROG Door Hanger(s)
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x Thermistor cable(s)
- BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
- Manageability
WOL , PXE
- Operating System
Windows 10 64-bit
- Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Note
*1 When the M.2_1 Socket 3 is operating in SATA mode, SATA port 2 will be disable.
*2 Due to limitations in HDA bandwidth, 32-Bit/192kHz is not supported for 8-Channel audio.
