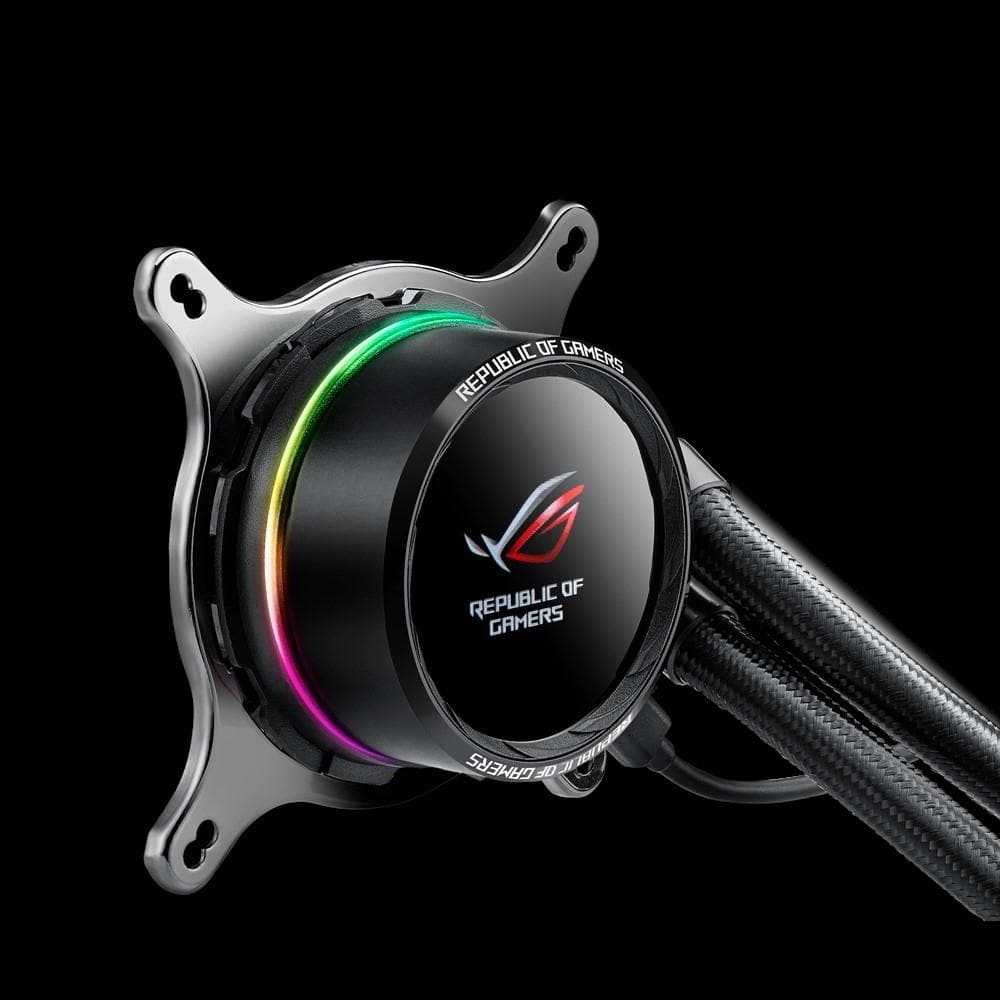

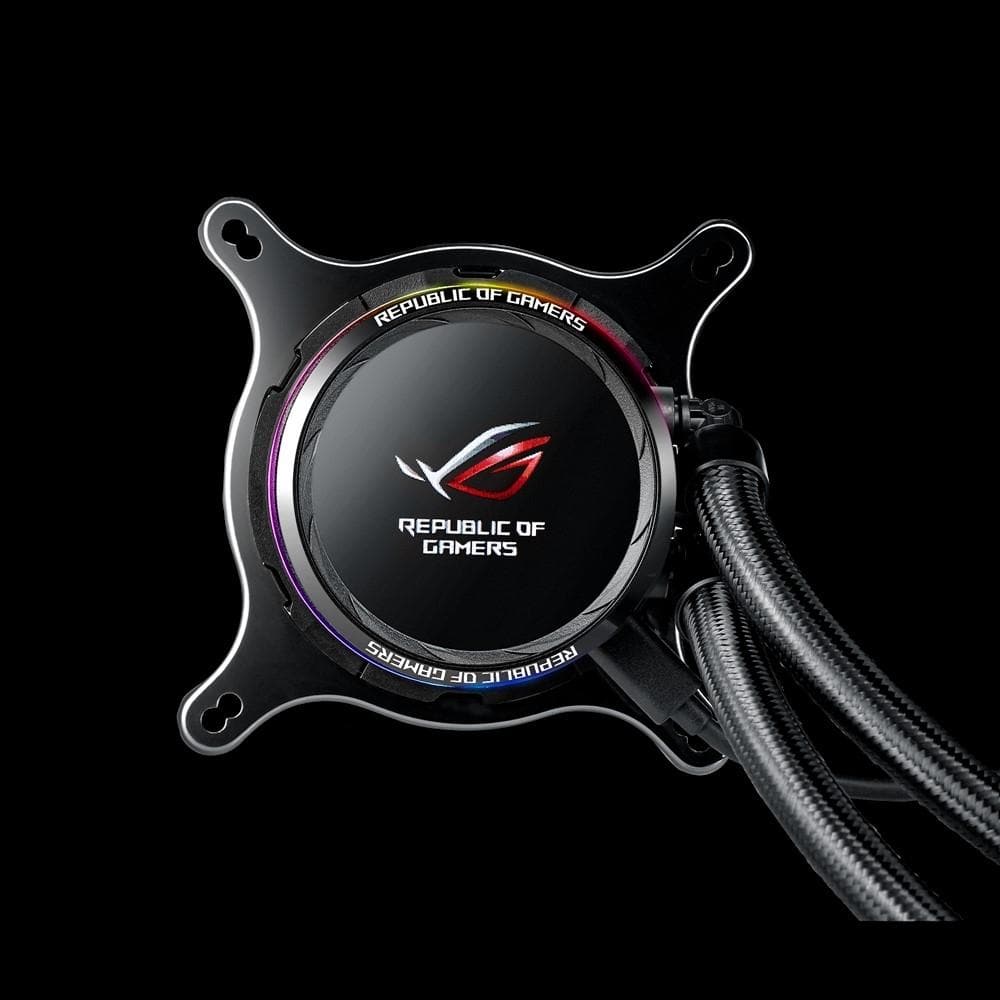

- Water Block
Water Block Dimension: 80 x 80 x 45 mm
Block Material (CPU plate): Copper
CPU Socket Support: Intel: LGA 115x,1366, 2011, 2011-3, 2066AMD: AM4, TR4*
- Radiator
Radiator Dimension: 150 x 122 x 27 mm
Radiator Material: Aluminum
Tube: Sleeved Rubber tube
Tube Length: 380 mm
- Fan

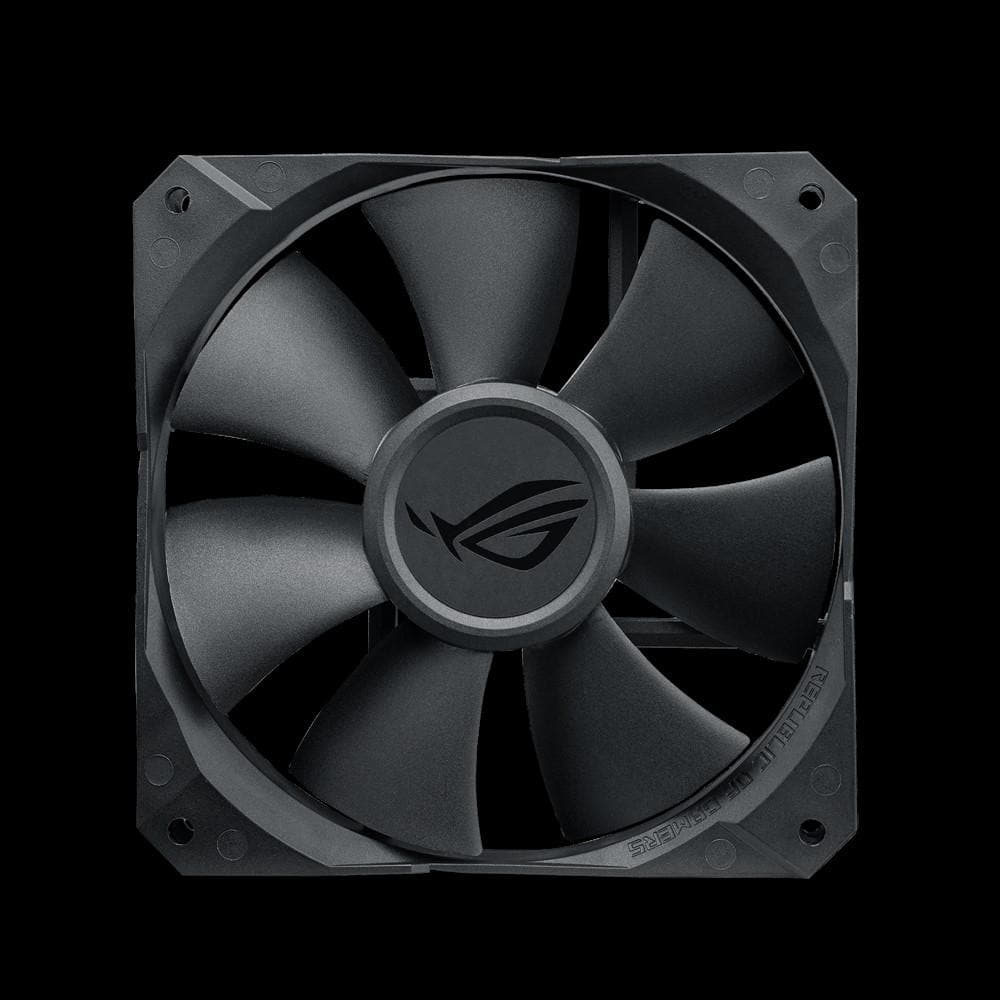

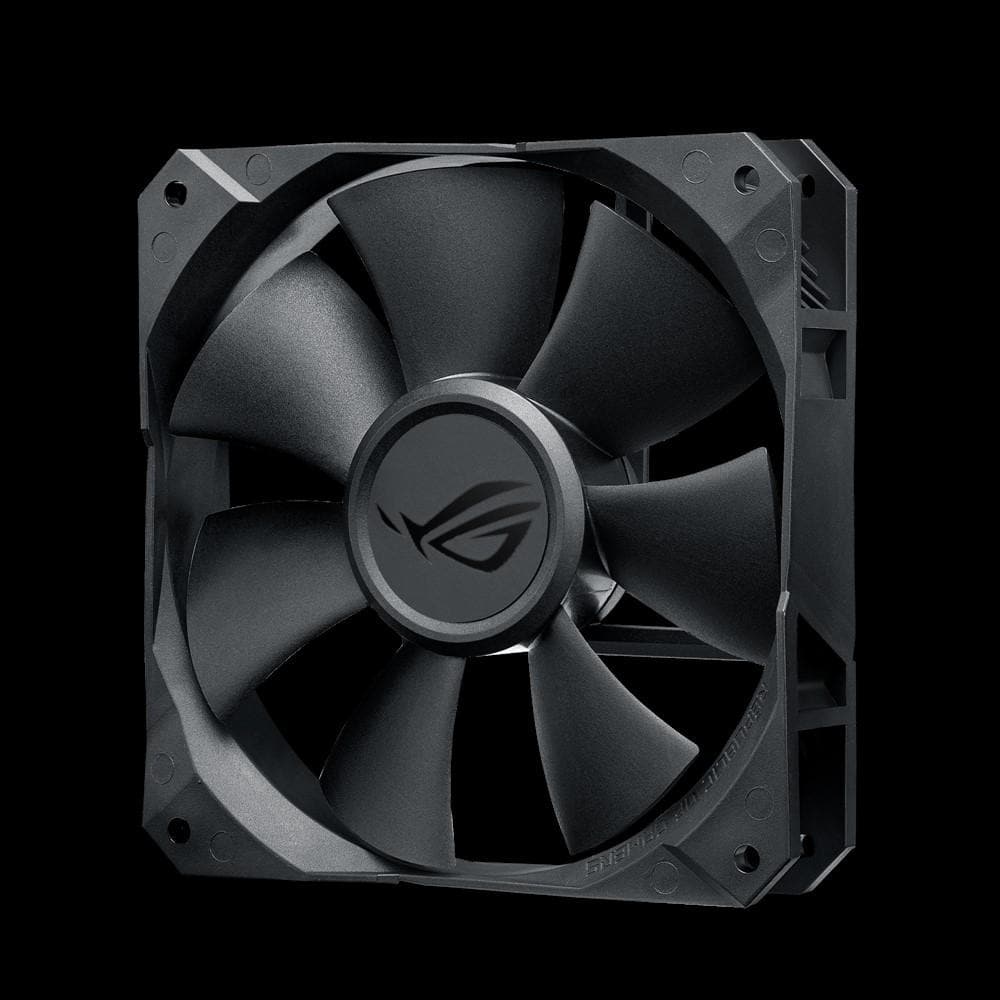

Fan: 1 x ROG Designed radiator FAN
Fan size: 1 Fan Slots (120mm)
Fan Dimension: 120 x 120 x 25 mm
Fan Speed: 800 ~ 2500 RPM +/- 10 %
Fan Static Pressure: 5.0 mmH2O
Fan Air Flow: 80.95 CFM / 137.5 m3h
Fan Noise: 37.6 dB(A)
Control Mode: PWM
- Special Features
OLED Display: 1.77 " Full Color OLED
AURA Sync Support: Yes

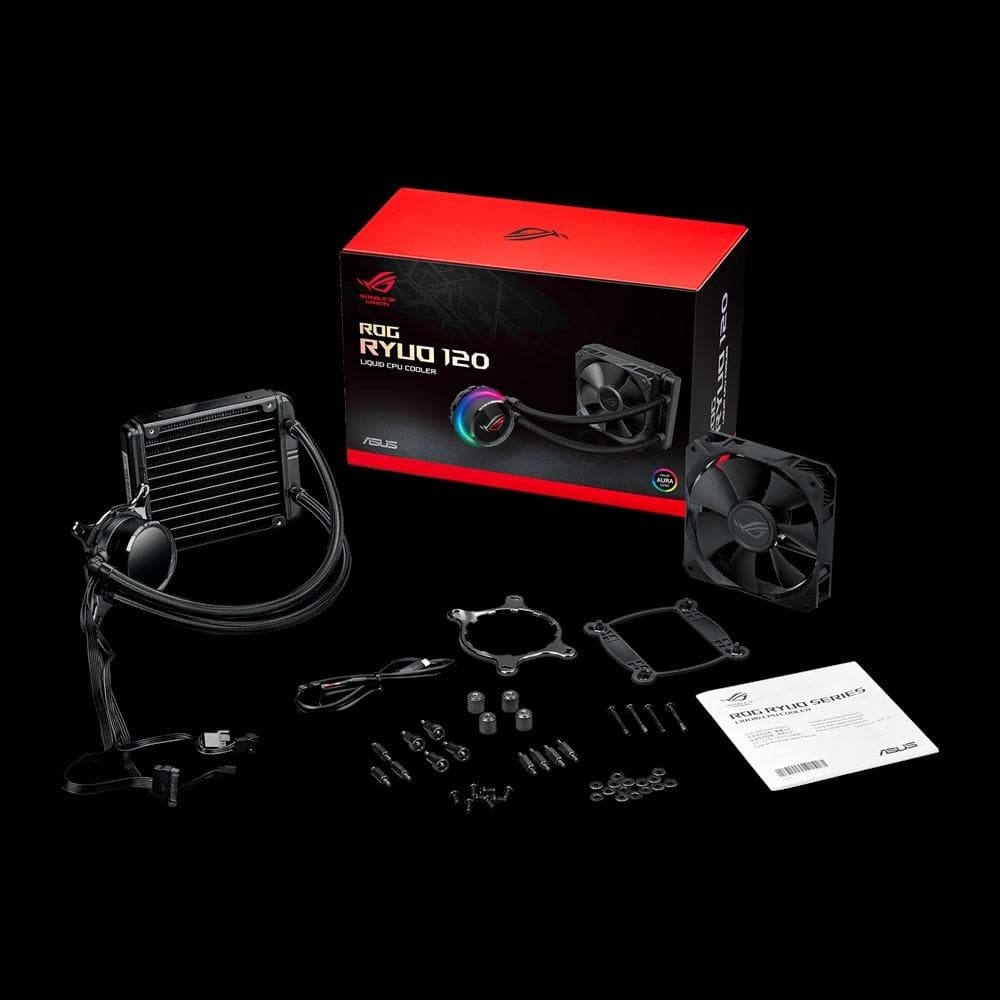

- Package Content

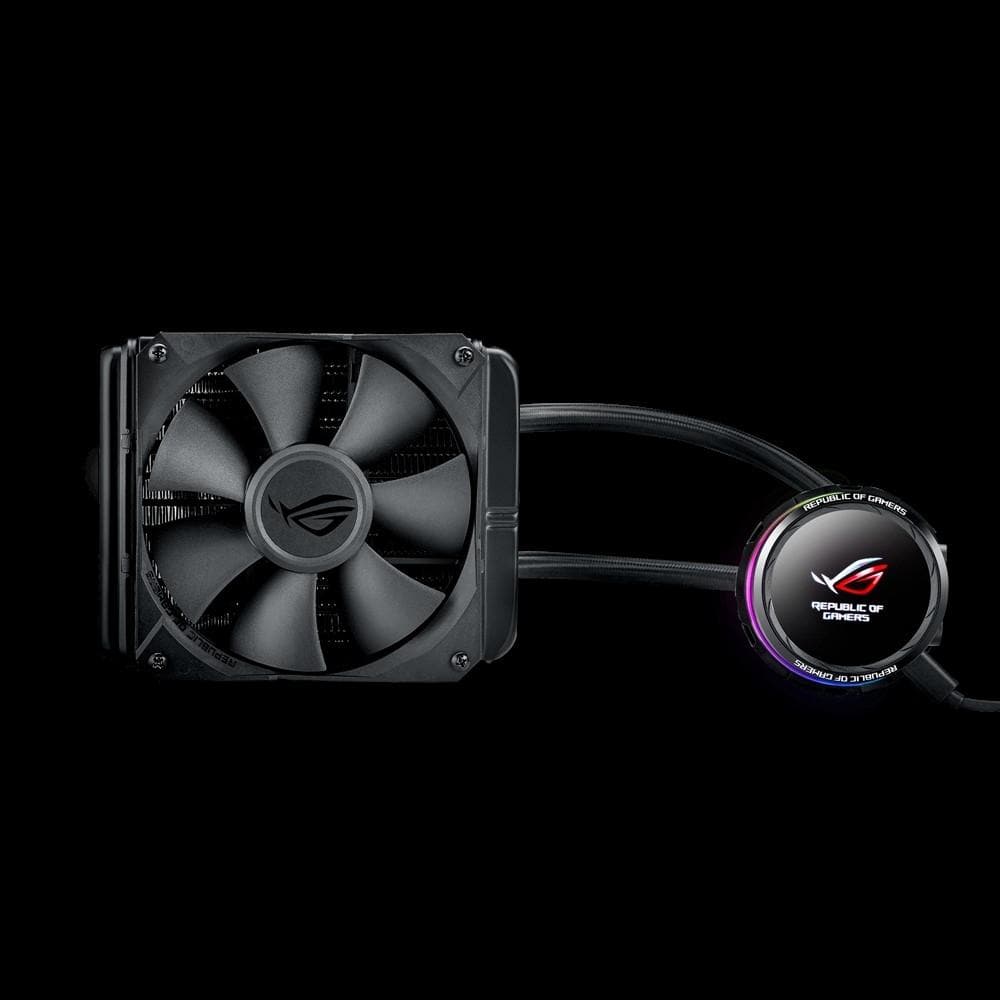

ROG RYUO 120 Liquid Cooler
Accesory Pack of Scews and brackets
1 x 120mm ROG Ryuo Fan Model 12
USB Cable for Software control
Thermal compound (pre-applied)
Quick Start Guide
- Compatibility
Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM4, TR4*
- Warranty
Warranty: 3 years
- Note
*The mounting bracket is bundled with TR4 CPU Package, not in the RYUO's package
** JPG/GIF only accept 160 x 128 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding
*** Hardware monitor and fan control is optimized for ASUS motherboards
**** for control radiator FAN from the Y-Cable on the pump, please install AI Suite III v3.00.26 or above version to support ROG AIO cooler
