- CPU
Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
* Refer to for CPU support list
- Chipset
Intel Z390
- Memory
4 x DIMM, Max. 128GB, DDR4 4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Refer to for the Memory QVL (Qualified Vendors Lists).
* The maximum memory frequency supported varies by processor.
- Graphic
Integrated Graphics Processor- Intel UHD Graphics support
Multi-VGA output support : HDMI/DisplayPort ports
- Supports HDMI with max. resolution 4096 x 2160 @ 30 Hz
- Supports DisplayPort with max. resolution 4096 x 2304 @ 60 Hz
Supports Intel InTru 3D, Quick Sync Video, Clear Video HD Technology, Insider
DP 1.2 Multi-Stream Transport compliant, supports DP 1.2 monitor daisy chain up to 3 displays
- Multi-GPU Support
Supports AMD CrossFireX Technology
- Expansion Slots
1 x PCIe 3.0/2.0 x16 (x16 or x8+x4+x4)
1 x PCIe 3.0/2.0 x16 (max at x4 mode) *1
4 x PCIe 3.0/2.0 x1 *1
*For 3 SSD on CPU support, install a Hyper M.2 X16 card (sold separately) into the PCIeX16_1 slot, enable this card under BIOS settings.
- Storage
Intel Z390 Chipset :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*3
6 x SATA 6Gb/s port(s), gray, *3
Support Raid 0, 1, 5, 10
Intel Rapid Storage Technology supports
Intel Optane Memory Ready
Intel CPU with Intel Rapid Storage Technology support (RAID 0 & RAID 1)
PCIEX16_1 slot supports up to 3 Intel PCIe NVME SSDs via a Hyper M.2 X16 series Card*4
- LAN
Intel I219V, featuring Turbo LAN
TUF LANGuard
Dual interconnect between the integrated Media Access Controller (MAC) and physical layer (PHY)
- Wireless Data Network
Intel Wireless-AC 9560
Wi-Fi 802.11 a/b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports 2x2 MU-MIMO
Supports channel bandwidth: HT20/HT40/HT80/HT160
- Bluetooth
Bluetooth 5.0
- Audio
Realtek ALC S1200A 8-Channel High Definition Audio CODEC
- Supports : Jack-detection, Front Panel Jack-retasking
Audio Feature :
- Exclusive DTS Custom for GAMING Headsets.
- Audio Shielding: Ensures precision analog/digital separation and greatly reduced multi-lateral interference
- Dedicated audio PCB layers: Separate layers for left and right channels to guard the quality of the sensitive audio signals
- Premium Japanese audio capacitors: Provide warm, natural and immersive sound with exceptional clarity and fidelity
* Choose the chassis with HD audio module in front panel to support 8-channel audio output.
- USB Ports
Intel Z390 Chipset :
2 x USB 3.1 Gen 2 port(s) (2 at back panel, , Type-A)
Intel Z390 Chipset :
8 x USB 3.1 Gen 1 port(s) (4 at back panel, , Type-A, 4 at mid-board)
Intel Z390 Chipset :
3 x USB 2.0/1.1 port(s) (3 at mid-board)
- Special Features
Fan Xpert4
- Advanced fan and liquid controls for ultimate cooling and quietness
ASUS TUF PROTECTION
- ASUS DIGI+ VRM: Precision control for stable power
- ASUS SafeSlot: Protect your graphics card Investment
- ASUS ESD Guard: Enhanced ESD protection
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
ASUS Optimem II
- Optimem (Improved DDR4 stability)
ASUS EPU :
- EPU
TUF ENGINE! Power Design :
- TUF Components (Choke, Cap. & MOSFET; certified by military-standard)
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
ASUS Exclusive Features :
- AI Suite 3
- Ai Charger
- Turbo LAN
- PC Cleaner
- File Transfer
- ASUS C.P.R.(CPU Parameter Recall)
ASUS Quiet Thermal Solution :
- Stylish Fanless Design: PCH Heat-sink & MOS Heat-sink & M.2 Heat-sink solution
- ASUS Fan Xpert 4
ASUS EZ DIY :
- ASUS O.C. Tuner
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
ASUS Q-Design :
- ASUS Q-Slot
- ASUS Q-DIMM
M.2 Onboard(The latest transfer technologies with up to 32Gb/s data transfer speeds)
MemOK! II
- Enhance memory compatibility. More smart and convenient. Keep high performance. (Shorten the PC starting time)
Q-Installer
- Auto download driver and software. Friendly for first PC builder.

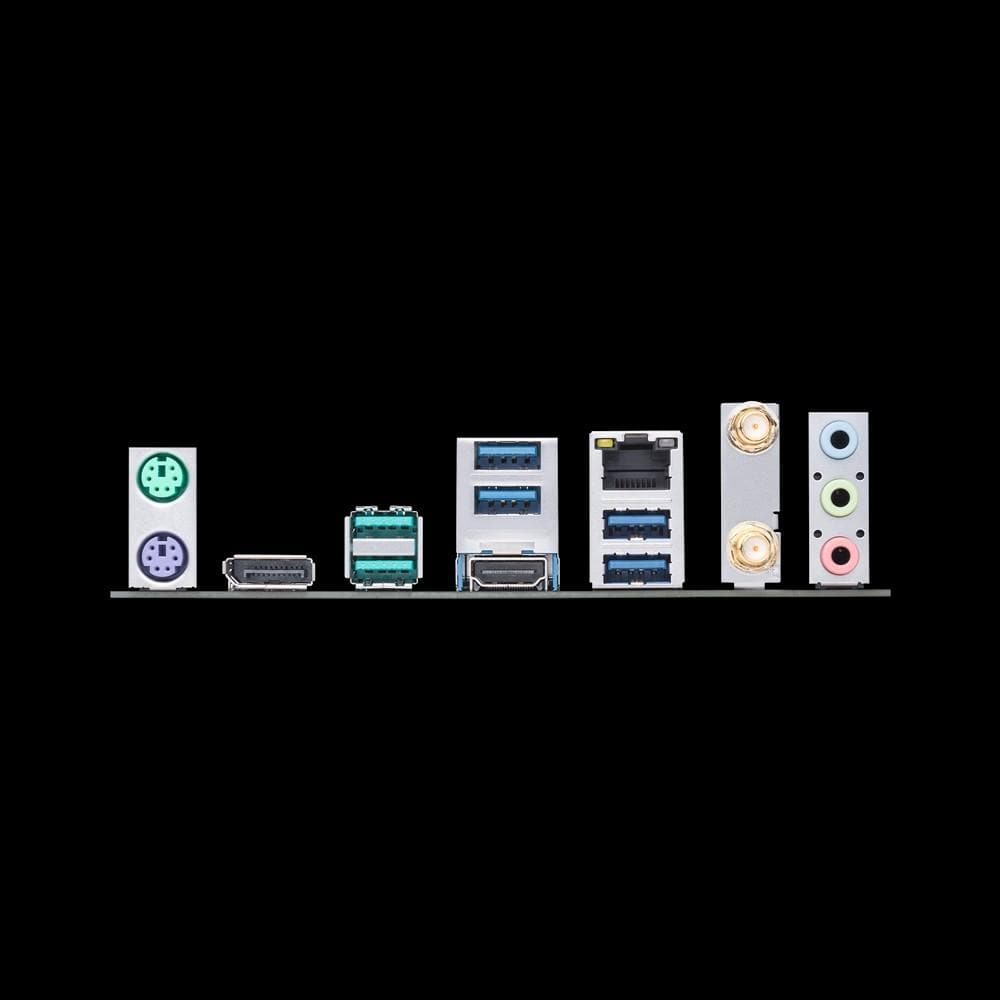

- Back I/O Ports
1 x PS/2 keyboard (purple)
1 x PS/2 mouse (green)
1 x DisplayPort
1 x HDMI
1 x LAN (RJ45) port(s)
2 x USB 3.2 Gen 2 Type-A,
4 x USB 3.2 Gen 1 Type-A
2 x Wi-Fi antenna port(s)
3 x 8-channel Audio I/O
- Internal I/O Ports
2 x Aura RGB Strip Header(s)
2 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 4 USB 3.2 Gen 1 port(s)
1 x USB 2.0 1-port connector(s) support(s) additional 1 USB 2.0 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s) (4 -pin)
1 x CPU OPT Fan connector(s) (4 -pin)
2 x Chassis Fan connector(s) (4 -pin)
1 x AIO_PUMP connector ()
1 x S/PDIF out header(s)
1 x 8-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x Front panel audio connector(s) (AAFP)
1 x MemOK! II switch(es)
1 x Clear CMOS jumper(s)
1 x System panel connector

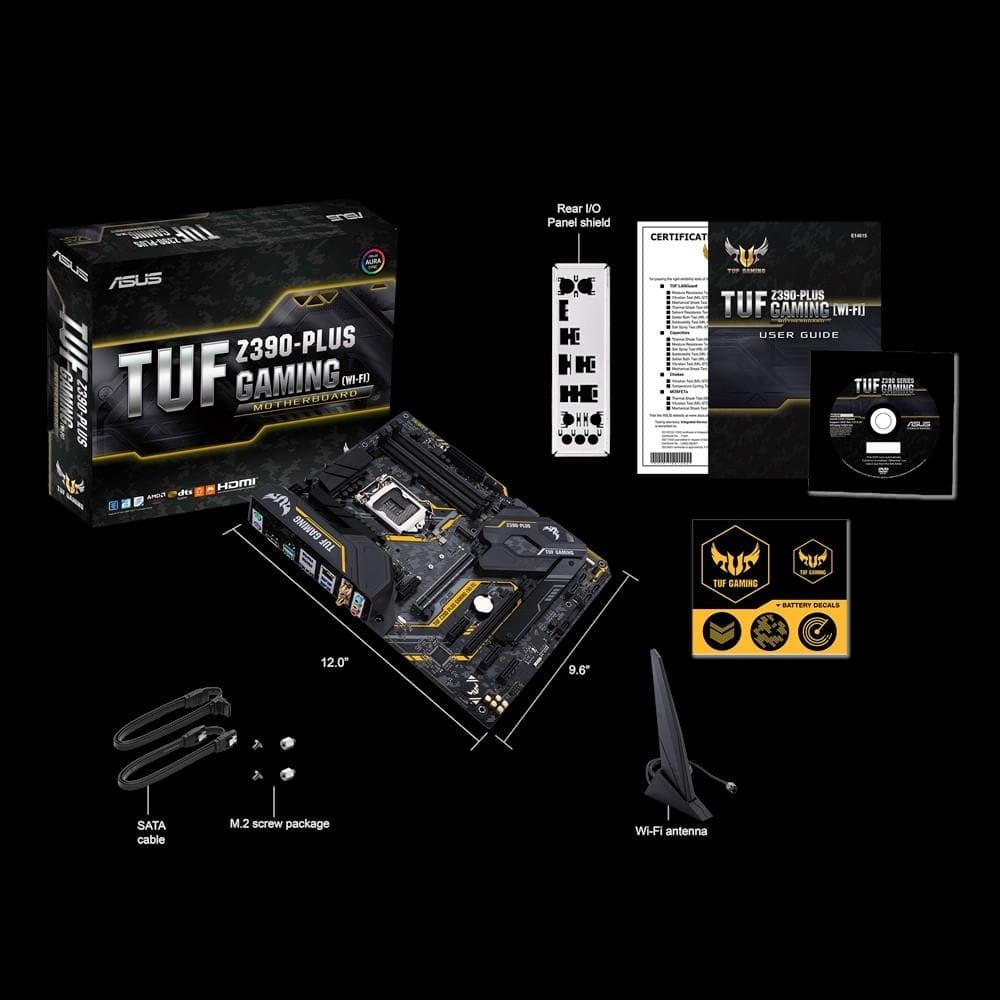

- Accessories
User's manual
I/O Shield
2 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x TUF Gaming Sticker
1 x TUF Certification card(s)
1 x SCD (by region)
1 x Wi-Fi moving antenna
- BIOS
128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F11 EZ Tuning Wizard, F6 Qfan Control, F3 My Favorites, Last Modified log, F9 Search, F12 PrintScreen, and ASUS DRAM SPD (Serial Presence Detect) memory information
- Support Disc
Drivers
ASUS Utilities
ASUS EZ Update
Anti-virus software (OEM version)
- Operating System
Windows 10 64-bit
- Form Factor
ATX Form Factor
12.0 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
- Management Solution
WOL by PME, PXE
- Note
*1. The PCIe x1_3, PCIe x1_4 slots share bandwidth with PCIe x16_2. The PCIe x16_2 slot runs at x2 mode as default. Please check BIOS for more configuration.
*2. When a device in SATA mode is installed on the M.2_1 socket, SATA_2 port cannot be used.
*3. When a device is installed on the M.2_2 socket, SATA_5/6 port cannot be used.
*4. Supports CPU RAID with Intel PCIe NVME SSDs. RAID 0 and 1 are supported via a Hyper M.2 X16 series card or on RAID sets created between the onboard M.2 socket and a Hyper M.2 X16 series card.
