- CPU
Intel Socket 1151 9th / 8th Gen Intel Core, Pentium Gold and Celeron Processors
Supports Intel 14 nm CPU
Supports Intel Turbo Boost Technology 2.0
* The Intel Turbo Boost Technology 2.0 support depends on the CPU types.
- Chipset
Build in Intel Z390
- Memory
4 x DIMM, Max. 64GB, DDR4 4400(O.C)/4266(O.C.)/4133(O.C.)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3400(O.C.)/3333(O.C.)/3300(O.C.)/3200(O.C.)/3000(O.C.)/2800(O.C.)/2666(O.C.)/2400(O.C.)/2133 MHz Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
* Hyper DIMM support is subject to the physical characteristics of individual CPUs.
- Graphic
Integrated Graphics Processor- Intel UHD Graphics support
VGA output support : HDMI port
- Supports HDMI 1.4b with max. resolution 4096 x 2160 @ 30 Hz
- Multi-GPU Support
Supports NVIDIA 2-Way SLI Technology
Supports AMD 3-Way CrossFireX Technology
- Expansion Slots
Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors
2 x PCIe 3.0 x16 (x16, x8/x8, or x8/x4+x4)
Intel Z390 Chipset
1 x PCIe 3.0 x16 (max at x4 mode) *
1 x PCIe 3.0 x16
- Storage
Socket 1151 for 9th / 8th Gen Intel Core, Pentium Gold and Celeron processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)*2
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s port(s)
Intel Optane Memory Ready
- LAN
Intel I219V
Anti-surge LANGuard
ROG GameFirst V Technology
- Wireless Data Network
Intel Wireless-AC 9560
Wi-Fi 802.11 b/g/n/ac
Supports dual band frequency 2.4/5 GHz
Supports channel bandwidth: HT20/HT40/HT80/HT160
- Bluetooth
Bluetooth 5.0
- Audio
ROG SupremeFX 8-Channel High Definition Audio CODEC S1220
- Impedance sense for front and rear headphone outputs
- Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input
- SupremeFX Shielding Technology
- ESS ES9023P
- Supports up to 32-Bit/192kHz playback *3
Audio Feature :
- Optical S/PDIF out port(s) at back panel
- USB Ports
Intel Z390 Chipset :
1 x USB 3.1 Gen 2 front panel connector port(s)
Intel Z390 Chipset :
4 x USB 3.1 Gen 2 port(s)
Intel Z390 Chipset :
8 x USB 3.1 Gen 1 port(s)
Intel Z390 Chipset :
4 x USB 2.0 port(s)
ASMedia USB 3.1 Gen 1 controller :
2 x USB 3.1 Gen 1 port(s)
- ROG Exclusive Features
ROG RGB Armor
ReTry Button
Start Button
Extreme Engine Digi+ :
- MicroFine Alloy Chokes
- 10K Black Metallic Capacitors
Extreme Tweaker
ROG Patented Pre-mounted I/O Shield
ROG Exclusive Software
- Mem Tweakit
- RAMCache III
- RAMDisk
- CPU-Z
- GameFirst V
- Sonic Studio III + Sonic Studio Link
- Sonic Radar III
- Special Features
5-Way Optimization by Dual Intelligent Processors 5
- 5-way Optimization tuning key perfectly consolidates TPU Insight, EPU Guidance,and Turbo app
AURA :
- Aura Lighting Control
- Aura RGB Strip Headers
- Aura Lighting Effects Synchronization with compatible ASUS ROG devices
- Aura Addressable Strip Header(s)
ASUS Exclusive Features :
- USB BIOS FlashBack
- MemOK! II
- AI Suite 3
- Ai Charger
- ASUS CrashFree BIOS 3
- Armoury Crate
- Pre-mounted I/O Shield
- ASUS NODE: hardware control interface
- OptiMem II
- ASUS EZ Flash 3
- ASUS C.P.R.(CPU Parameter Recall)
- BUPDATER
- BIOS FlashBack Button
- Clear CMOS Button
- Reset Button
ASUS Q-Design :
- ASUS Q-Code
- ASUS Q-LED (CPU, VGA, Boot Device LED)
- ASUS Q-DIMM
- ASUS Q-Connector
- Back I/O Ports
1 x HDMI
4 x USB 3.2 Gen 2
6 x USB 3.2 Gen 1
1 x Optical S/PDIF out
1 x Clear CMOS button(s)
1 x USB BIOS FlashBack Button(s)
1 x ASUS Wi-Fi Module
5 x Gold-plated audio jacks
Anti-surge LAN (RJ45) port
- Internal I/O Ports
2 x Aura Addressable Strip Header(s)
2 x Aura RGB Strip Headers
2 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x M.2 Socket 3 with M key, type 2242/2260/2280/22110 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (PCIE 3.0 x 4 mode)
6 x SATA 6Gb/s connector(s)
1 x CPU Fan connector(s)
1 x CPU OPT Fan connector(s)
1 x Chassis Fan connector(s)
1 x Optional Fan connector(s)
1 x AIO_PUMP connector
1 x H_AMP fan connector
1 x W_PUMP+ connector
1 x 4-pin EATX 12 V Power connector
1 x 24-pin EATX Power connector(s)
1 x 8-pin EATX 12V Power connectors
1 x Front panel audio connector(s) (AAFP)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x MemOK! II switch(es)
1 x Thermal sensor connector(s)
1 x Node Connector(s)
1 x 5-pin EXT_FAN(Extension Fan) connector
1 x ReTry button
1 x System panel connector
1 x T_Sensor Connector
1 x W_IN header
1 x W_OUT header
1 x W_FLOW header
1 x USB 3.1 Gen 2 front panel connector
2 x USB 3.1 Gen 1 connector(s) support(s) additional 2 USB 3.1 Gen 1 port(s)
1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
1 x Start button
1 x Reset button
1 x Q-Code

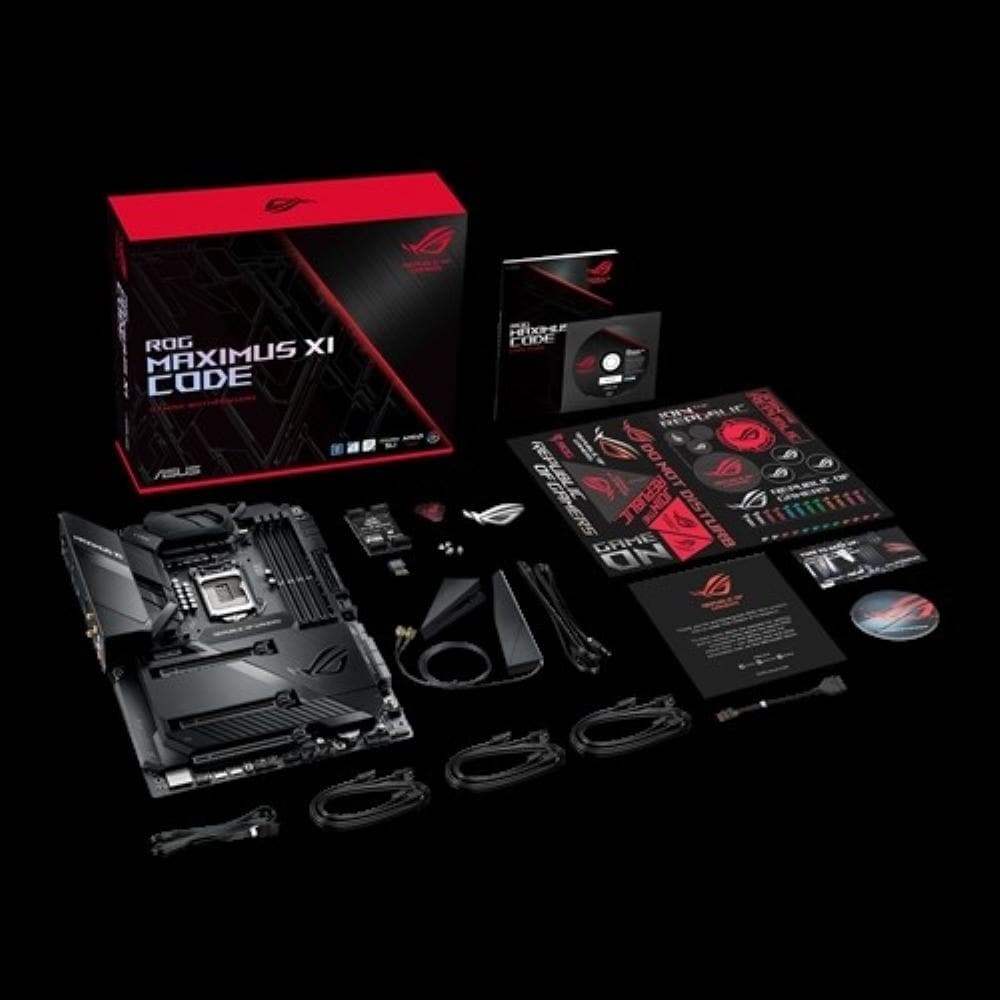

- Accessories
User's manual
1 x ROG logo plate sticker
1 x 2-Way SLI bridge(s)
6 x SATA 6Gb/s cable(s)
1 x M.2 Screw Package
1 x Supporting DVD
1 x ASUS 2T2R dual band Wi-Fi moving antennas (Wi-Fi 802.11a/b/g/n/ac compliant)
1 x Q-Connector
1 x Extension Cable for RGB strips (80 cm)
1 x Extension cable for Addressable LED
1 x ROG coaster(s)
1 x USB 3.1 Gen 1 Header to USB 2.0 adapter cable
1 x ROG Thank you card
- BIOS
1 x 128 Mb Flash ROM, UEFI AMI BIOS, PnP, DMI3.0, SM BIOS 3.1, ACPI 6.1
- Manageability
WOL , PXE
- Operating System
Windows 10 64-bit
- Form Factor
ATX Form Factor
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
