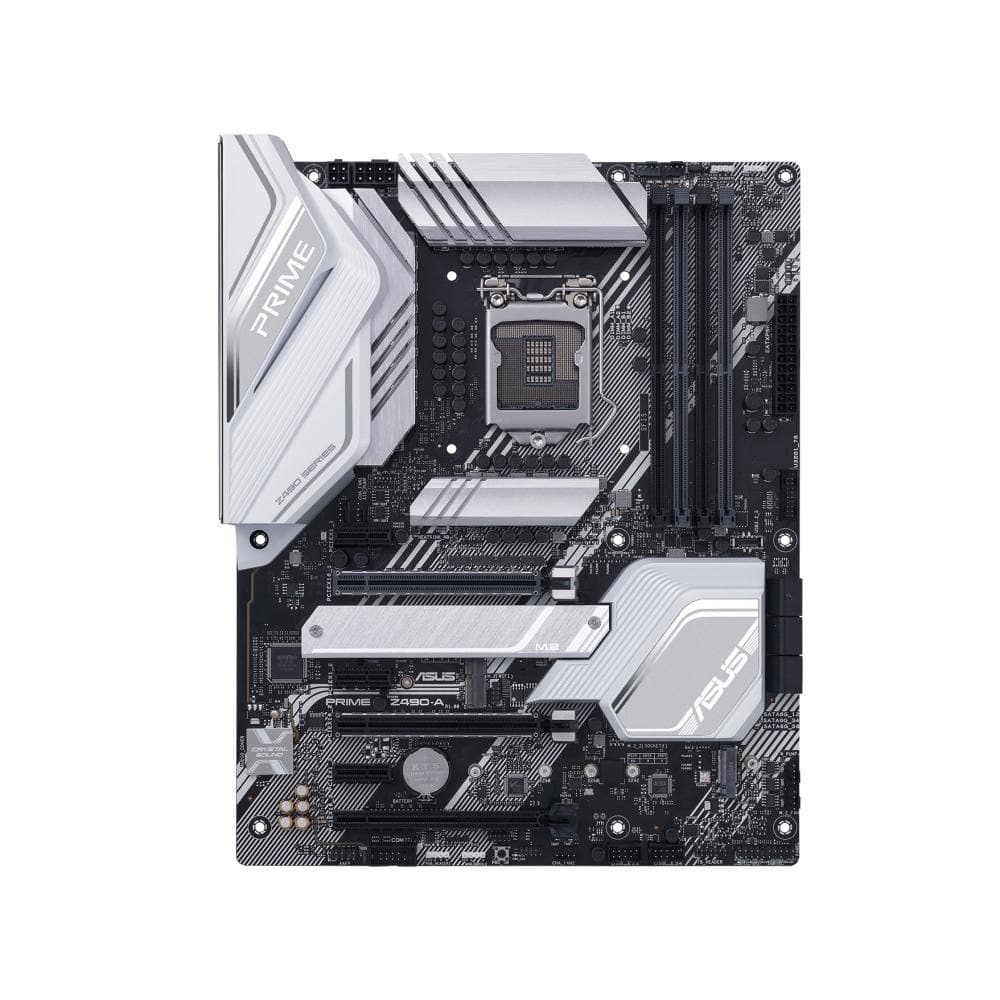

Intel Z490 (LGA 1200) ATX motherboard with dual M.2, 14 DrMOS power stages, HDMI, DisplayPort, SATA 6 Gbps, Intel 2.5Gb Ethernet, USB 3.2 Gen 2 Type-C, Thunderbolt 3 support, and Aura Sync RGB lighting
Chipset | Intel Z490 |
Form Factor | ATX |
Memory | 4x DDR4 / 128GB |
Memory Frequency (MHz) | DDR4 4266(O.C.) |
Integrated Graphics Output | HDMI, DP |
PCIe x16 Slots | 2 |
PCIe x1 | 3 |
Multi-GPU Support | 2-way SLI 3-way CFX |
SATA 6Gb/s (incl. SATA Express) | 6 |
M.2 Storage | 1 x 22110 (PCIe 3.0 x4 & SATA) 1 x 22110 (PCIe 3.0 x4 ) |
Thunderbolt | TB Header |
Bluetooth & Wi-Fi 802.11ac (2.4/5GHz) | - |
Gigabit Ethernet | Intel I225-V 2.5Gb |
RGB header | 2 x ARGB 2 x RGB |
Audio Codec | Realtek S1220A |
Warranty | 3 Years |
