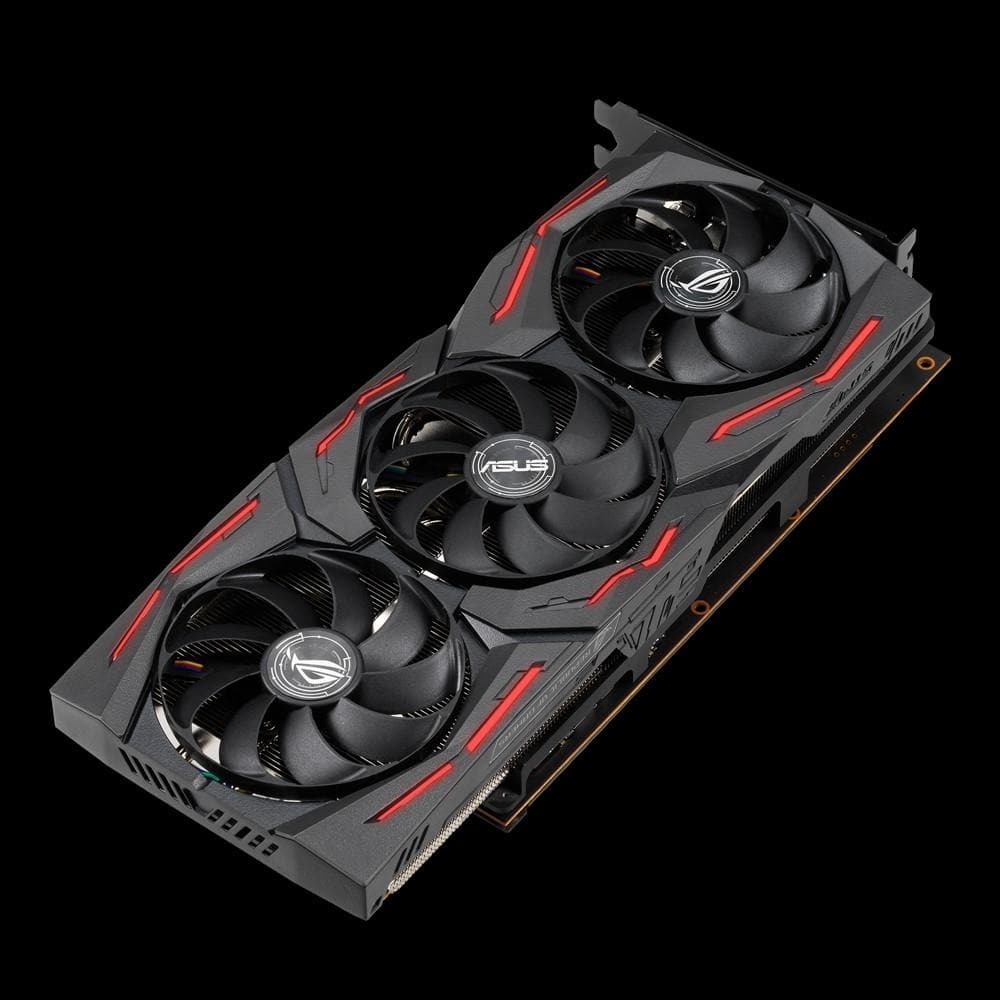

The ROG Strix Radeon RX 5700 XT OC edition 8GB GDDR6 dominates 1440p gaming.
- Graphics Engine
AMD Radeon RX 5700 XT
- Bus Standard
PCI Express 4.0
- OpenGL
OpenGL4.6
- Video Memory
GDDR6 8GB
- Engine Clock OC Mode
P Mode : 1840 MHz (Base clock), Up to 1965 MHz (Game clock), ~ 2035 MHz (Boost clock)
- Engine Clock Gaming Mode
P Mode : 1770 MHz (Base clock), Up to 1905 MHz (Game clock), ~ 2010 MHz (Boost clock)
- Stream Processors
2560
- Memory Clock
14 Gbps
- Memory Interface
256-bit
- Resolution
Digital Max Resolution:7680x4320
- Interface
HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (Native) (DisplayPort 1.4)
HDCP Support : Yes (2.3)
- Maximum Display Support
6
- NVlink/ Crossfire Support
Yes
- Recommended PSU
600W
- Power Connectors
2 x 8-pin
- Accessories
1 x Quick Guide
1 x ROG Velcro Hook & Loop
- Software
ASUS GPU Tweak II & Driver
- Dimensions
12 " x 5.1 " x 2.1 " Inch
30.5 x 13 x 5.4 Centimeter
- Slot
2.7 slot
- Note
* Game Frequency is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.
* Crossfiresupports DX12 andVulkan only
