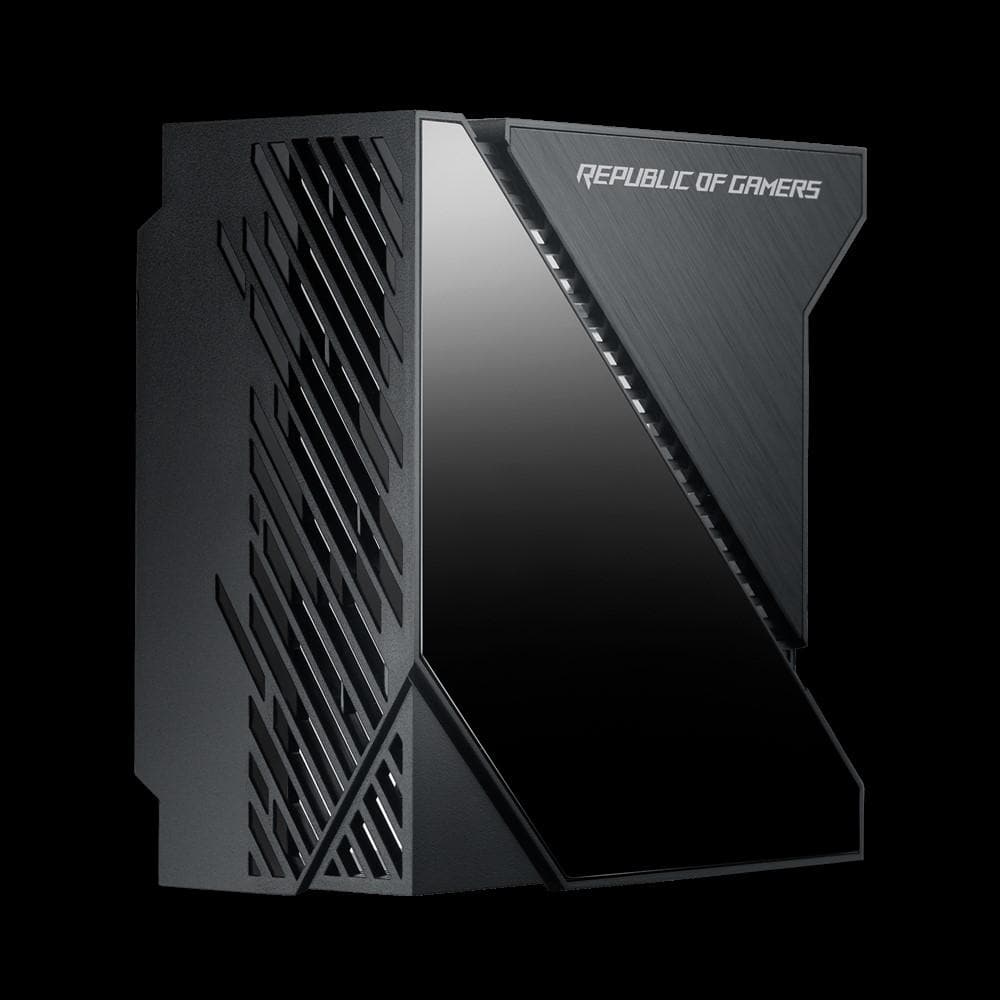

- Water Block
Water Block Dimension: 100 x 100 x 70 mm
Block Material (CPU plate): Copper
CPU Socket Support: Intel: LGA 115x,1366, 2011, 2011-3, 2066AMD: AM4, TR4*
- Radiator
Radiator Dimension: 272 x 122 x 27 mm
Radiator Material: Aluminum
Tube: Sleeved Rubber tube
Tube Length: 380 mm
- Fan

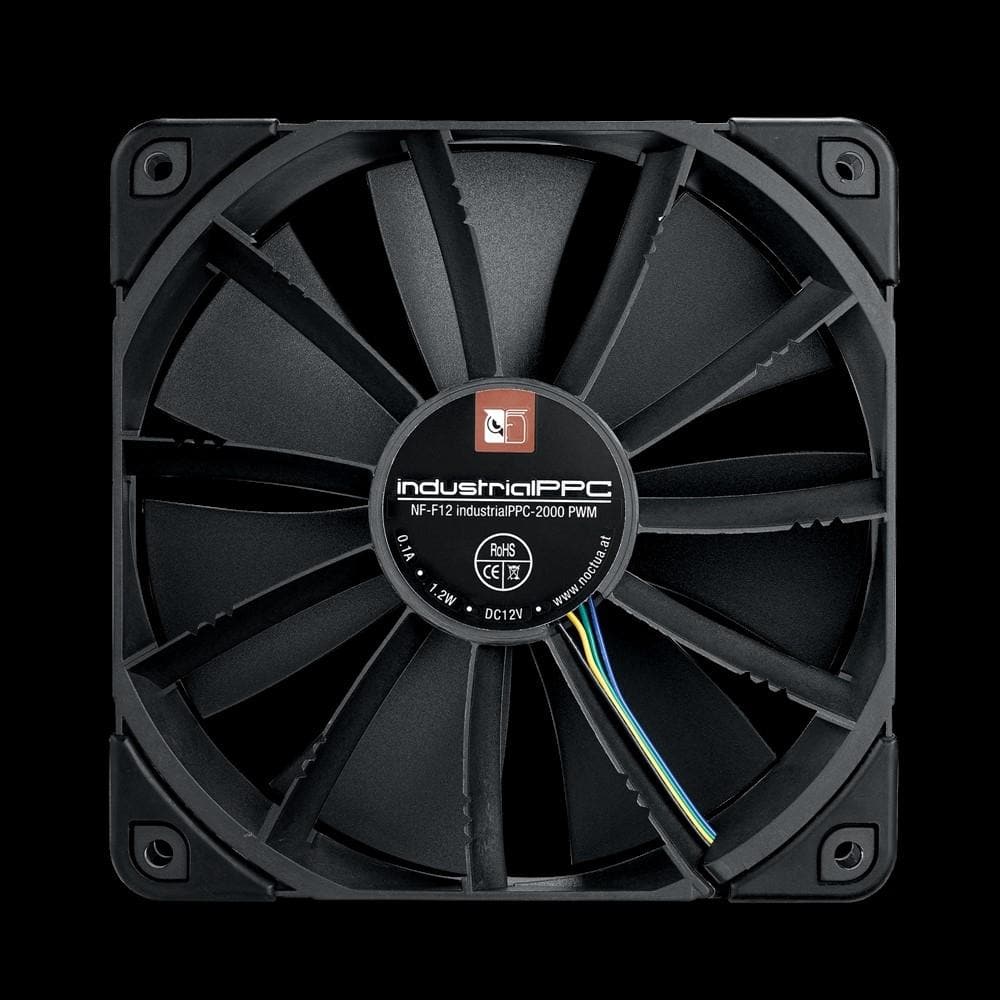

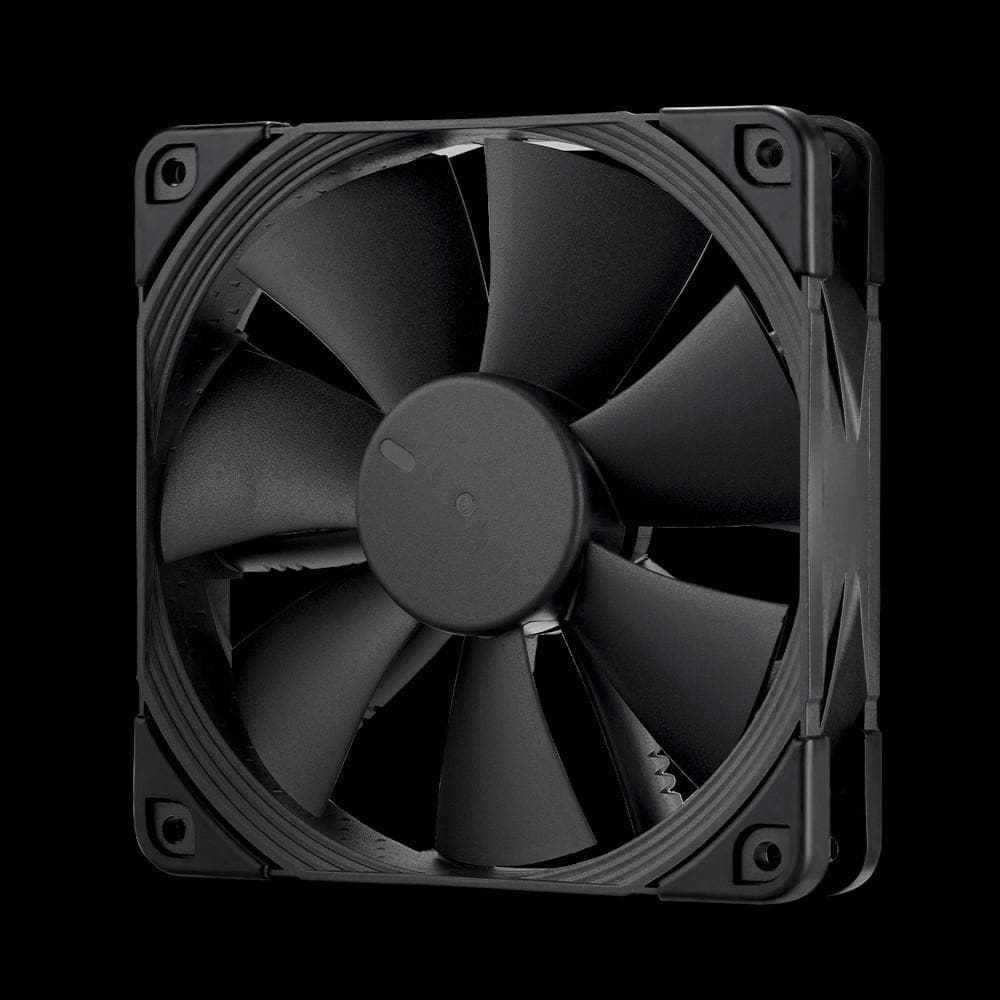

Fan: 2 x Noctua NF-F12 industrialPPC 2000 PWM
Fan size: 2 Fan Slots (120mm)
Fan Dimension: 120 x 120 x 25 mm
Fan Speed: 450 ~ 2000 RPM +/- 10 %
Fan Static Pressure: 3.94 mmH2O
Fan Air Flow: 71.6 CFM / 121.8 m3h
Fan Noise: 29.7 dB(A)
Control Mode: PWM
- Special Features

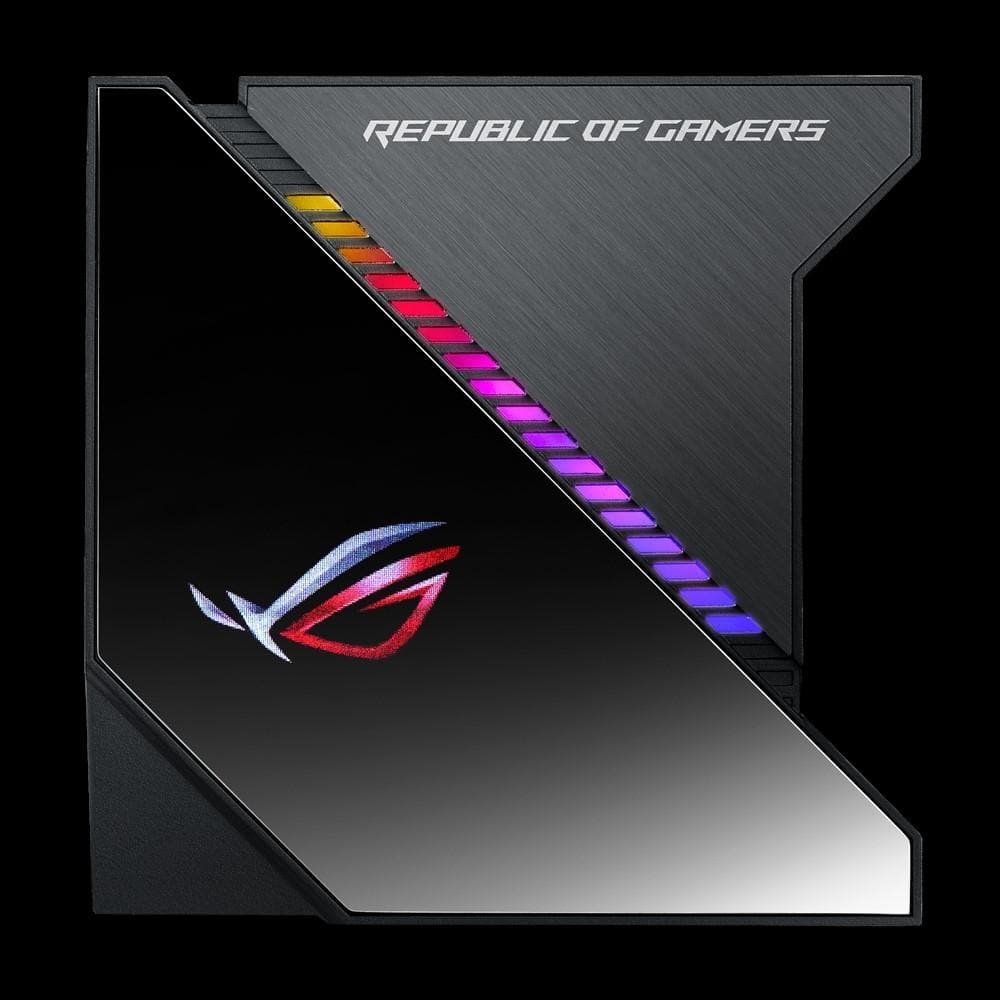

OLED Display: 1.77 " Full Color OLED
AURA Sync Support: Yes
Embedded FAN: Y
Embedded Fan Speed: 4800 RPM +/- 10 %
Embedded Fan Air Pressure: 3.23 mmH2O
Embedded Fan Air Flow: 19.41 CFM
Embedded Fan Noise: 31 dB(A)

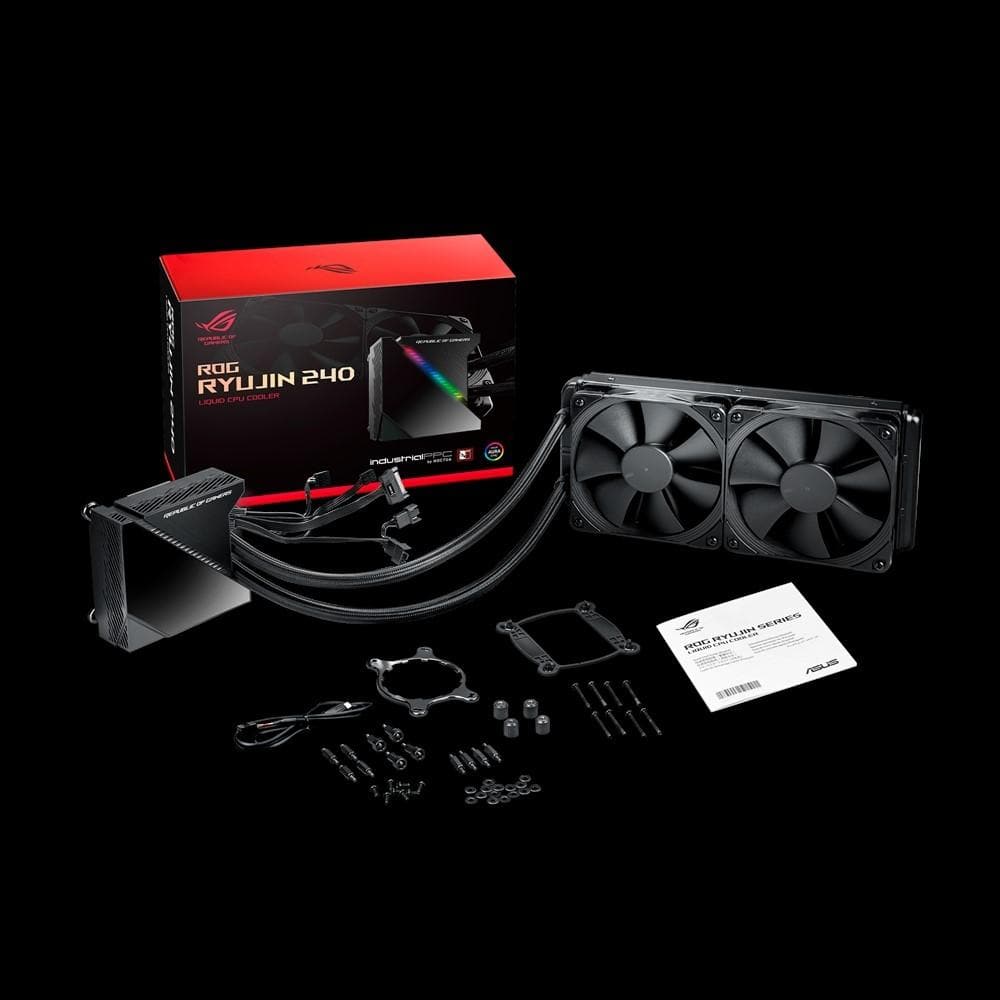

- Package Content

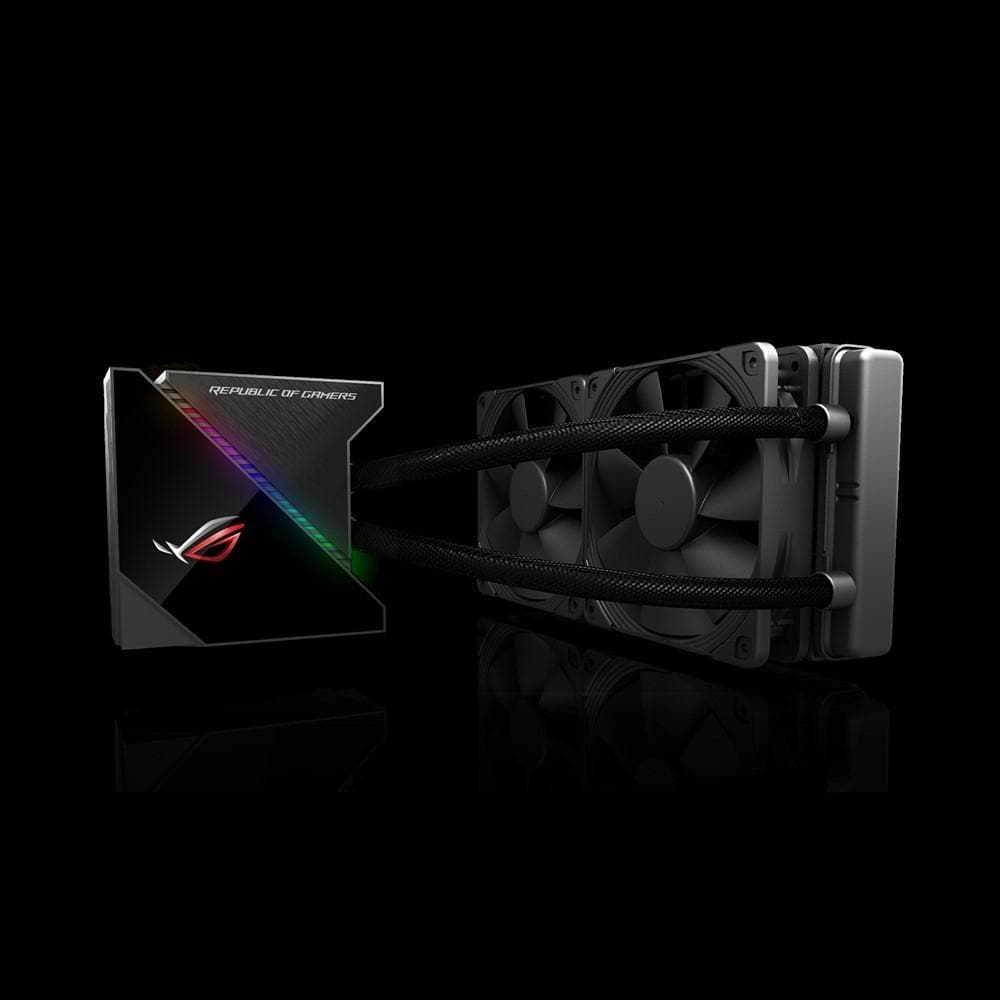

ROG RYUJIN 240 Liquid Cooler
Accesory Pack of Scews and brackets
2 x 120mm Noctua iPPC 2000 PWM Fan
Thermal compound (pre-applied)
Quick Start Guide
- Compatibility
Intel: LGA 1150, 1151, 1152, 1155, 1156, 1366, 2011, 2011-3, 2066
AMD: AM4, TR4*
- Warranty
Warranty: 3 years
- Note
*The mounting bracket is bundled with TR4 CPU Package, not in the RYUJIN's package
** JPG/GIF only accept 160 x 128 pixels resolution size lower than 1 MB. GIF files suggest remove transparent background and without complement frame to increase the successful rate of decoding
*** Hardware monitor and fan control is optimized for ASUS motherboards
**** for control radiator FAN from the Y-Cable and embedded fan on the pump, please install AI Suite III v3.00.26 or above version to support ROG AIO cooler
