- Graphics Engine

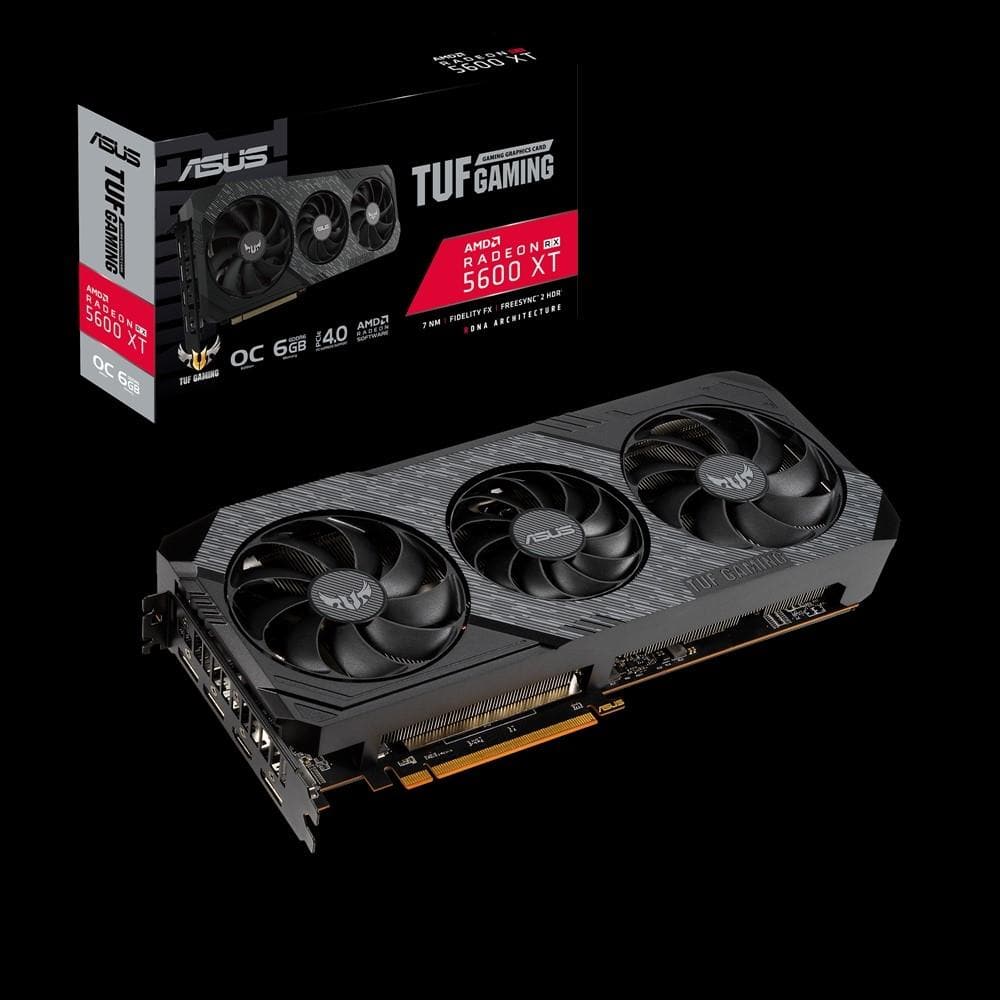

AMD Radeon RX 5600 XT
- Bus Standard
PCI Express 4.0
- OpenGL
OpenGL4.6
- Video Memory
GDDR6 6GB
- Engine Clock OC Mode
up to 1660 MHz (Game clock**) / ~ 1770 MHz (Boost clock*)
- Engine Clock Gaming Mode
up to 1615 MHz (Game clock**) / ~ 1750 MHz (Boost clock*)
- Stream Processors
2304
- Memory Speed
12Gbps
- Memory Interface
192-bit
- Resolution
Digital Max Resolution:7680x4320
- Interface
HDMI Output : Yes x 1 (Native) (HDMI 2.0b)
Display Port : Yes x 3 (Native) (DisplayPort 1.4)
HDCP Support : Yes (2.3)
- Maximum Display Support
4
- NVlink/ Crossfire Support
Yes
- Recommended PSU
450W
- Power Connectors
1 x 8-pin
- Accessories
1 x Speedsetup manual
1 x Thank you card
- Software
ASUS GPU Tweak II & Drivers
(please download all software from the support site.)
- Dimensions
11.13 " x 5.06 " x 2.12 " Inch
28.26 x 12.85 x 5.38 Centimeter
- Slot
2.7 slot
- Note
"*Game Frequency is the expected GPU clock when running typical gaming applications. Actual individual game clock results may vary.
**Boost frequency is the maximum expected GPU clock when lighter workloads are run under ideal thermal and electrical condition, set to typical TGP(Total Graphics Power). Actual individual boost clock results may vary.
***Crossfire support with DX12 and Vulkan only.
All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. If you do not use the latest and current specifications of ASUS products, you shall be liable for all loss and damage claimed by third party to ASUS based on false advertising or any other issues caused from using false specifications of ASUS products."
